HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A)

Prevedenie:Desktop, Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps; Maximálny počet portov:8.... viac
Bežná cena: 64.34  (-17%)
44.29 € bez DPH
Skladom 5 ks
53.15 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Popis a parametre
Diskusia

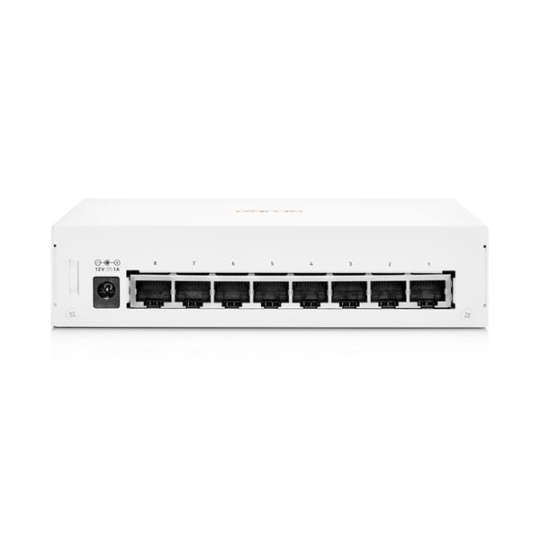

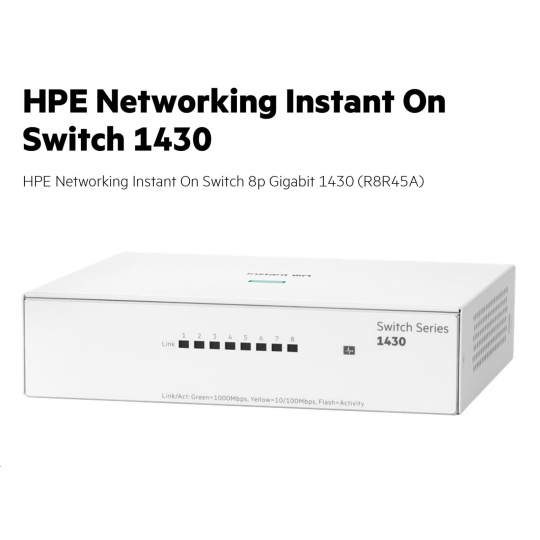

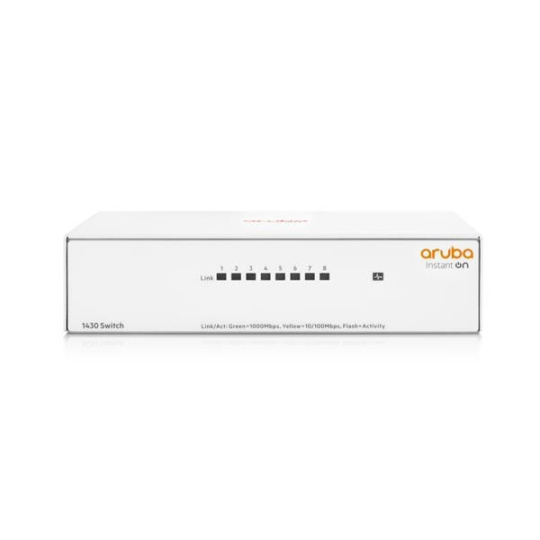

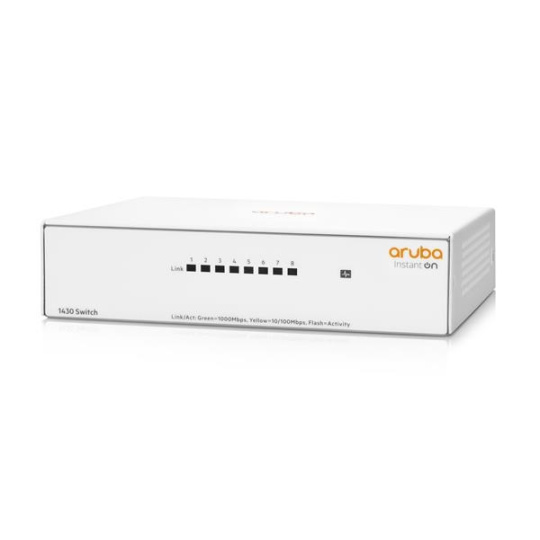

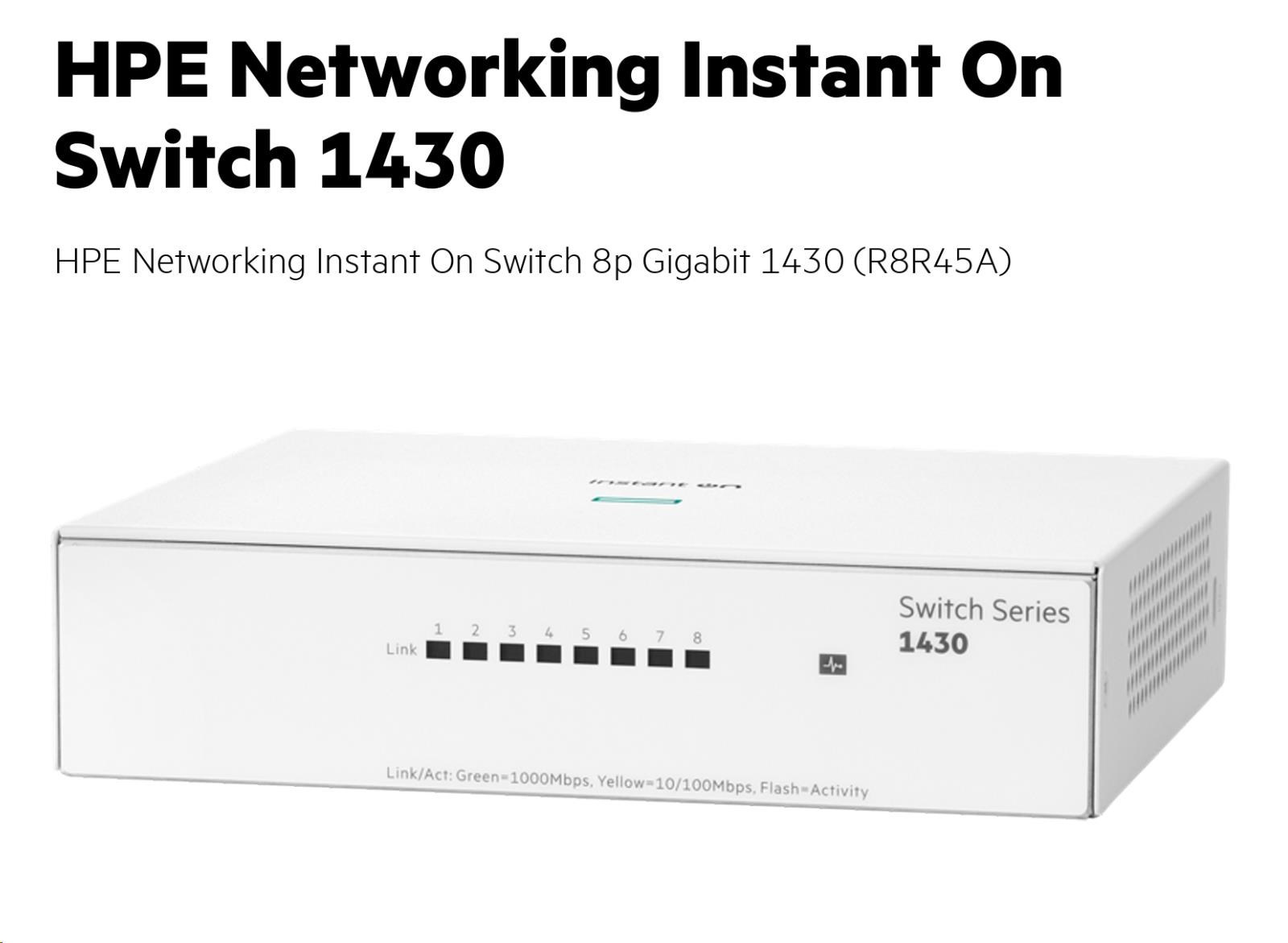

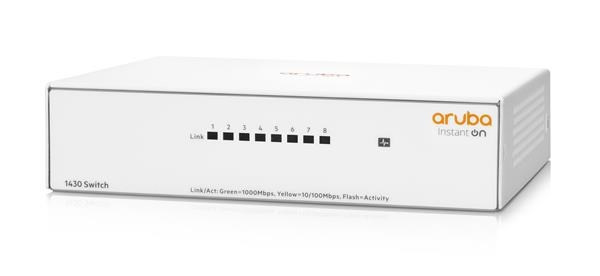

HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A)

HPE Networking Instant On Switch 8p Gigabit 1430

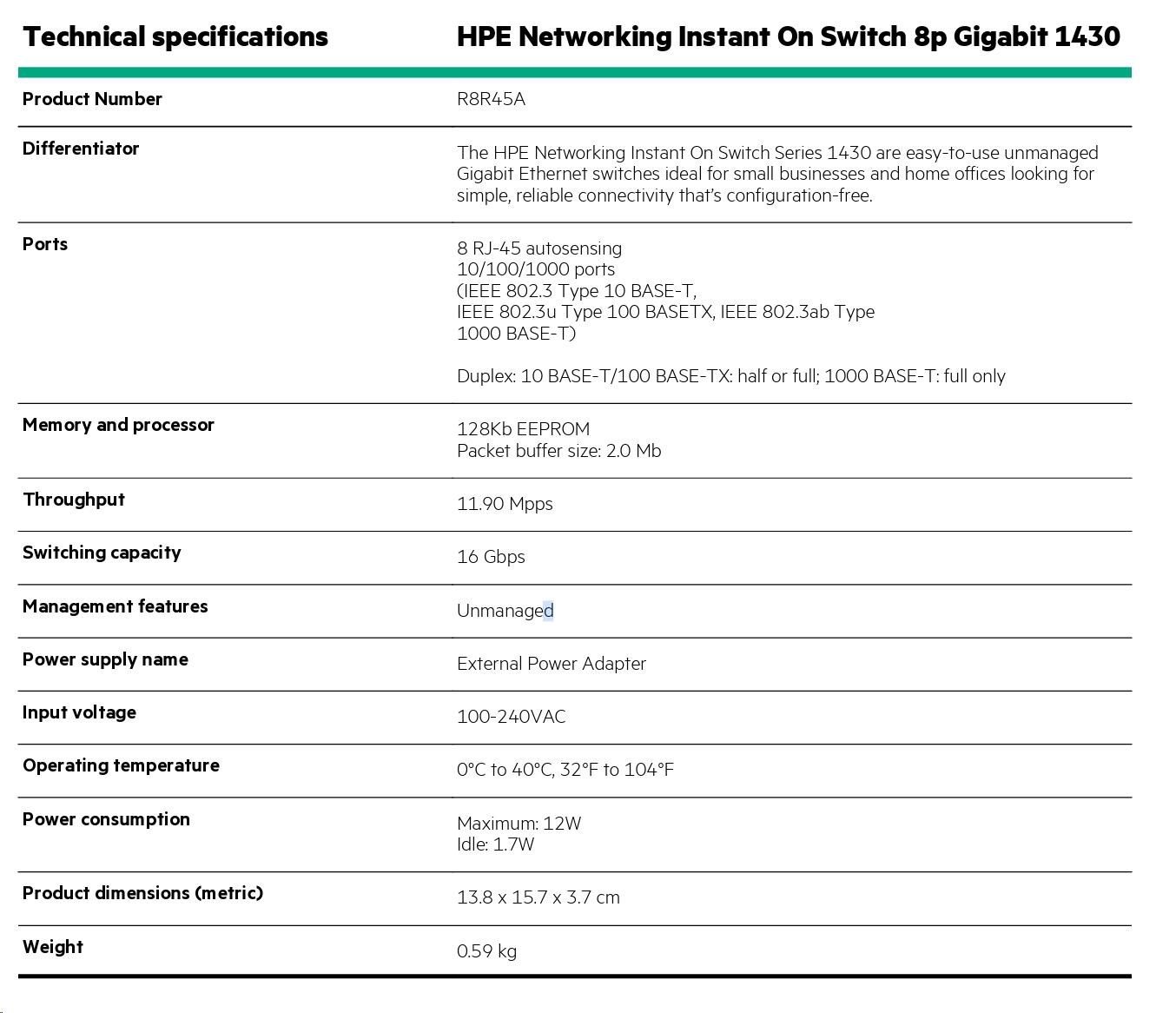

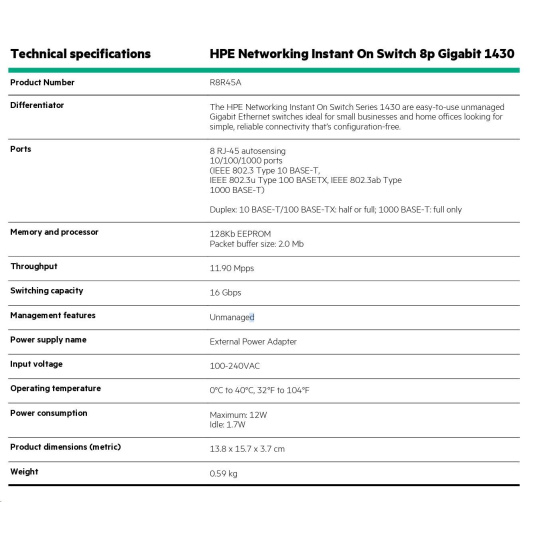

General Information

  • Product Name: HPE Networking Instant On Switch 1430 8-Port Gigabit

  • Product Number: R8R45A

  • Differentiator:
    Unmanaged, plug-and-play switch for small businesses and home offices. No configuration required. Provides reliable Gigabit connectivity.


Ports

  • Total Ports: 8 RJ-45 autosensing ports

  • Port Speeds Supported:

    • 10/100/1000 Mbps (IEEE 802.3, 802.3u, 802.3ab)

  • Duplex Modes:

    • 10/100 Mbps: Half or Full Duplex

    • 1000 Mbps: Full Duplex only


Performance

  • Throughput: 11.90 Mpps (Million packets per second)

  • Switching Capacity: 16 Gbps

  • Packet Buffer Size: 2.0 Mb

  • Memory: 128 Kb EEPROM


Power

  • Power Supply: External Power Adapter

  • Input Voltage: 100–240V AC

  • Power Consumption:

    • Maximum: 12W

    • Idle: 1.7W


Management Features

  • Type: Unmanaged (no management interface or configuration needed)


Environmental Specifications

  • Operating Temperature: 0°C to 40°C (32°F to 104°F)


Physical Characteristics

  • Dimensions: 13.8 x 15.7 x 3.7 cm

  • Weight: 0.59 kg

HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A) (R8R45A)

I/O ports and slots

8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Dimensions

138(d) x 157(w) x 37(h) mm

Weight

1.30 lb (0.59 kg)

Processor and Memory

128Kb EEPROM; Packet buffer size: 2.0 Mb

100 Mb latency

< 2.7 Î1Sec

1000 Mb latency

< 1.80 Î1Sec

Throughput (Mpps)

11.90 Mpps

Capacity

16 Gbps

MAC address table size

8192 entries

Reliability MTBF (years)

416.2

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/ storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/ storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics

Fanless

Frequency

50Hz/60Hz

AC voltage

100-240VAC

Current

0.3A (12VDC - 1A)

Maximum power rating

12W

Idle power

1.7W

PoE power

-

Power Supply

External Power Adapter

Safety

  • EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
  • EN/IEC 62368-1, 2nd. & 3rd. Ed.
  • UL 62368-1, 3rd. Ed.
  • CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
  • EN/IEC 60825- 1:2014 Class 1

Emissions

  • EN 55032:2015/ CISPR 32, Class B
  • FCC CFR 47 Part 15: 2018, Class B
  • ICES-003, Class B
  • VCCI-32, Class B
  • CNS 13438, Class B
  • KS C 9832, Class B
  • AS/NZS CISPR 32, Class B

Immunity

BS/EN 55035, CISPR 35, KS C 9835

Generic

EN 55035, CISPR 35

EN

EN/IEC 61000-4-2

ESD

EN/IEC 61000-4-3

Radiated

EN/IEC 61000-4-4

EFT/Burst

EN/IEC 61000-4-5

Surge

EN/IEC 61000-4-6

Conducted

EN/IEC 61000-4-8

Power frequency magnetic field

EN/IEC 61000-4-11

Voltage dips and interruptions

EN/IEC 61000-3-2

Harmonics

EN /IEC 61000-3-3

Device Management

Unmanaged

Mounting

Mounting positions and supported racking

  • Supports table-top mounting
  • Supports wall-mounting with ports facing either up or down using base surface mounting holes
  • Supports under-table mounting using base surface mounting holes

HPE Networking Instant On Switch 1430 Series

Key Features

  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices
  • No configuration or management needed
  • Plug-and-play with fully automated functions and zero ongoing maintenance
  • Quality of Service (QoS) and flow control for improved network efficiency
  • Fan-less with Energy Efficient Ethernet for low power consumption
  • Class B certified for home office networks (5 and 8 port models)

Standard Features

Simplicity at its Best

  • Plug-and-play switches that work right out of the box
  • Zero configuration required

Reliable Connectivity

  • Connect faster with Gigabit Ethernet speed
  • PoE to power devices like APs and IP phones

We've Got You Covered

  • Industry-leading limited lifetime warranty and support
  • 24 x 7 chat support for entire warranty period

The Networking Instant On Differentiators

Better Together

HPE Networking Instant On products work together to provide a seamless Wi-Fi experience. Wired and wireless voice traffic is prioritized with high QoS priority end-to-end for optimal voice performance.

Industry-Leading Support and Warranty

Expert-level support and industry-leading limited lifetime warranty are also included, along with chat support for the life of the product.

Additional Highlights

  • Plug-and-Play: Gigabit Ethernet speeds
  • Duplex Support: Half/full-duplex auto-negotiating capability on access ports
  • Fiber Uplinks: 26-port model includes two 1G SFP fiber ports for long-distance connectivity
  • Simplified Cabling: Auto MDI/MDI-X for cable type detection
  • PoE Certification: IEEE 802.3at (Class 4) and 802.3af compliant for APs, IP phones, etc.
  • EAPoL Forwarding: Supports 802.1x authentication forwarding
  • STP BPDU Forwarding: Ensures proper Spanning Tree operation to avoid loops

Traffic Optimization

  • QoS: Prioritizes voice/video traffic via DSCP and IEEE 802.1p
  • Flow Control: Helps prevent packet loss at congested nodes
  • Jumbo Frame Support: Up to 9216 bytes for large file transfers

Warranty, Service, and Support

HPE Networking Instant On Limited Lifetime Support provides:

  • 24x7 phone support for the first 90 days
  • 24x7 chat support for the entire warranty period
  • Community support for the lifetime of the product PE Networking Instant On Switch 1430 Overview

HPE Networking Instant On Switch 1430 Overview

Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budget-strapped businesses.

The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration.

With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

Model Availability

The HPE Networking Instant On Switch 1430 series includes seven models in both PoE and non-PoE configurations:

  • 1 × 5-port model
  • 2 × 8-port models
  • 2 × 16-port models
  • 1 × 24-port model
  • 1 × 26-port model with 2 SFP uplinks

PoE Capabilities

The PoE models support up to 30W per port (Class 4 PoE), suitable for powering:

  • Access Points
  • Surveillance Cameras
  • VoIP Phones

Power budgets:

  • 8-port PoE model: 64W
  • 16-port PoE model: 124W

Designed for Small Business

All switches are fan-less, making them ideal for acoustically sensitive environments such as home offices and meeting rooms. These switches are unmanaged and require no configuration—they are not managed by the HPE Networking Instant On cloud portal.

.
, ,
Maximální počet portů
8
Provedení
Desktop
Provedení
Rack mounted 19"
Technologie
Gigabit Ethernet 1000Mbps
Management
Ne
Přenosová rychlost LAN (Mb/s)
24
Funkce
QoS (Quality of service)
Funkce
L2
Počet SFP portů
0
Počet PoE Out portů
0
Počet portů Combo
0
Podporované standardy PoE
Žádný
Počet portů LAN
8
Ventilátor
Ne
Počet portů SFP28
0
Počet portů LAN
8
Maximální počet portů
8
Počet PoE Out portů
0
Počet portů Combo
0
Počet SFP portů
0
Počet portů SFP28
0
