ASUS MB Sc AM4 PRIME A520M-E/CSM, AMD A520, 2xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX

Formát:micro ATX; Chipset:AMD A520, AMD; Socket (pätica):Socket AM4; Typ pamäťového modulu:DDR4; Podpora RAID:1, 10; PCI express 16x:1.... viac
Bežná cena: 77.08  (-14%)
55.17 € bez DPH
Skladom > 5 ks
66.2 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 1887327
EAN: 4718017826396
Záruka: 36 Měsíc(ů)
Výrobca: Asus
Popis a parametre
Diskusia

ASUS MB Sc AM4 PRIME A520M-E/CSM, AMD A520, 2xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX

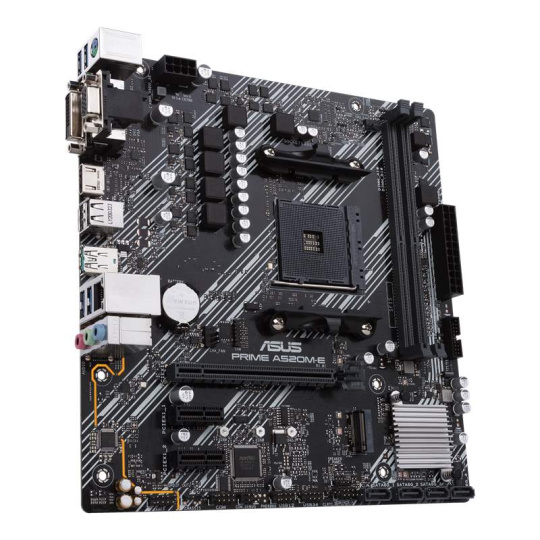

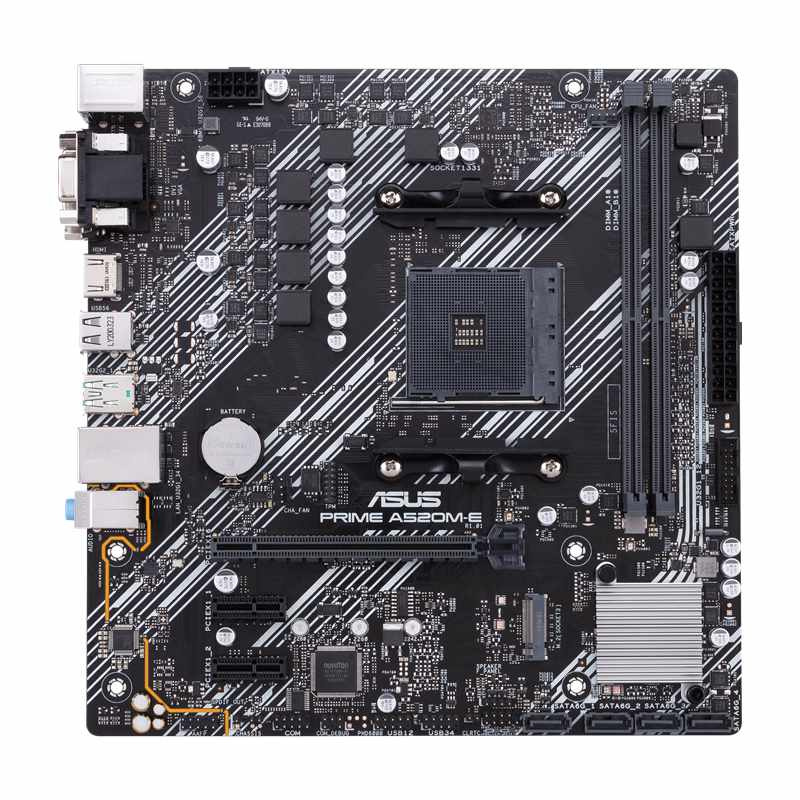

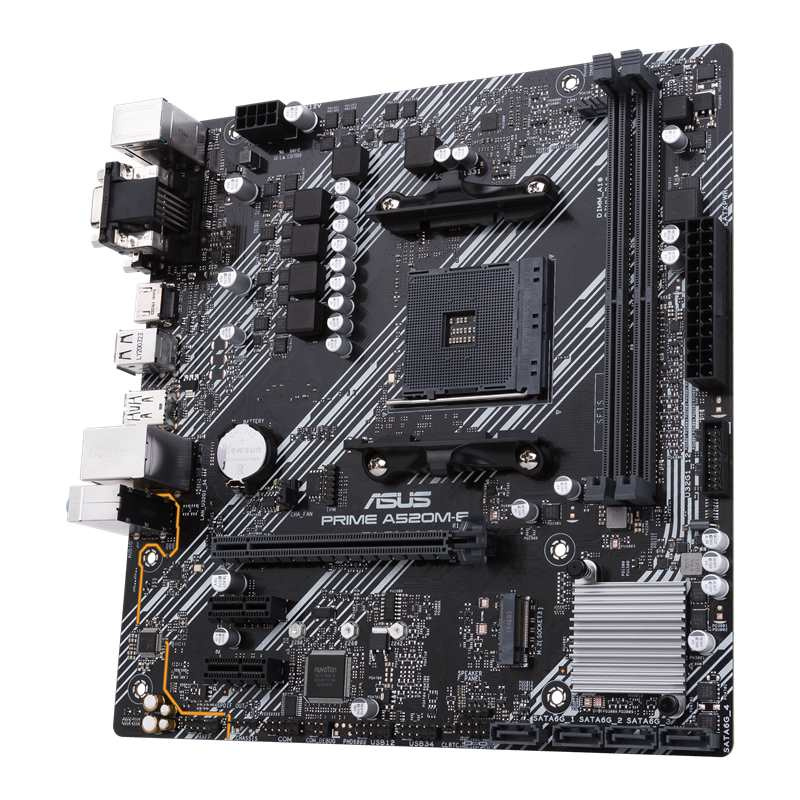

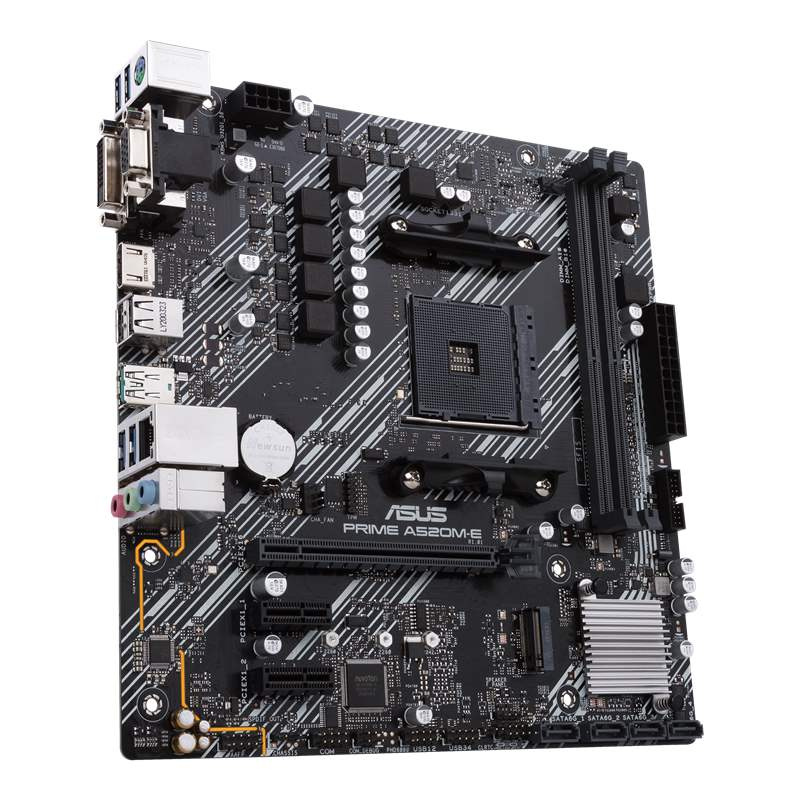

ASUS PRIME A520M-E/CSM

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/DVI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A

  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection


CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
* Refer to www.asus.com for CPU support list.



Chipset

AMD A520



Memory

2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.



Graphics

1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)



Expansion Slots

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1



Storage

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10



LAN

Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard



Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.



USB Ports

Rear USB Port ( Total 7 )
1 x USB 3.2 Gen 2 port(s)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)



Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



ASUS Special Features

ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control

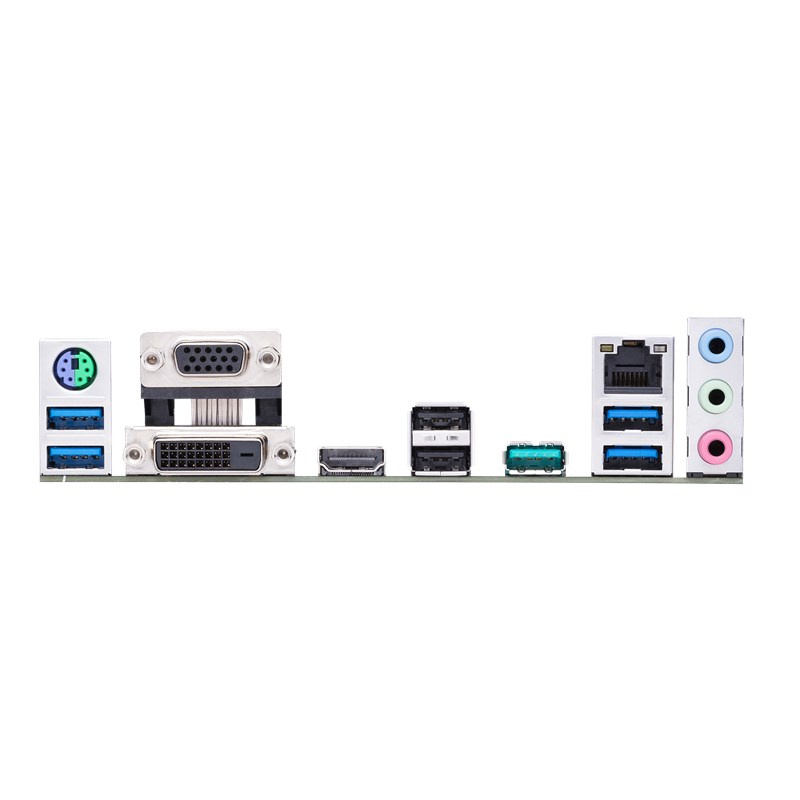

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)



Internal I/O Ports

1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector



Accessories

User´s manual
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)



BIOS

256 Mb Flash ROM, UEFI AMI BIOS



Manageability

WOL by PME, PXE



Operating System

Windows® 10 64-bit



Form Factor

mATX Form Factor
226 mm x 221 mm


.
, ,
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Formát základní desky
micro ATX
Chipset
AMD
Chipset
AMD A520
PCI Express x16
1
Podpora RAID
1
Podpora RAID
10
COM port
Ano
LPT port
Ne
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
AMD
Počet paměťových slotů
2
DisplayPort
0
TPM
Ano
USB 2
6
USB 3
7
PCI
0
M.2 slot
1
SATA 3
4
VGA
1
DVI
1
HDMI
1
Led Header
Ne
PCI Express x1
2
USB C
0
LAN
1Gbit/s
