ASUS MB Sc LGA1200 PRIME H510M-A R2.0, Intel H470, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

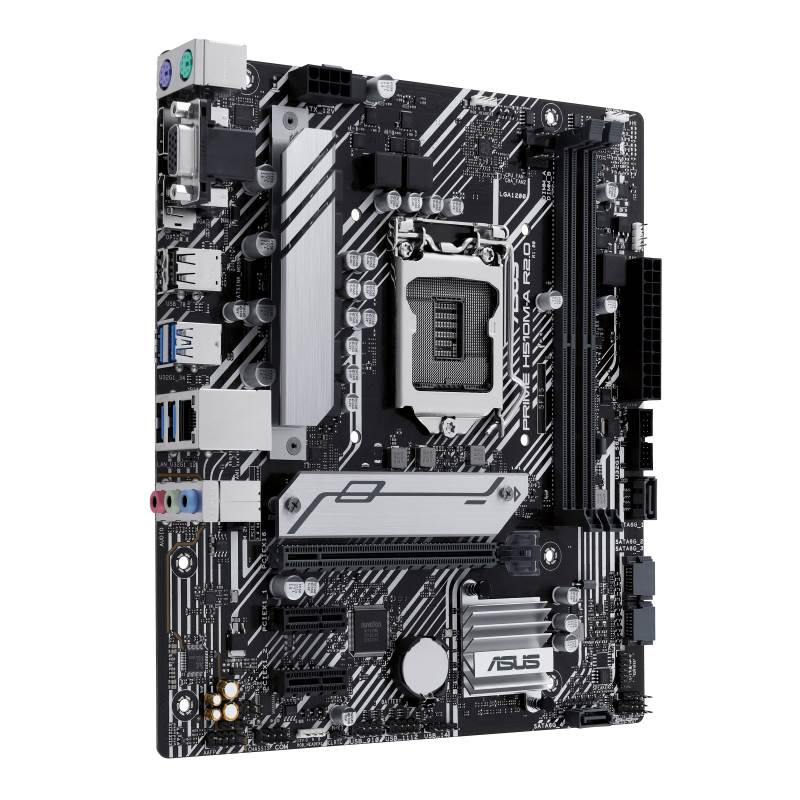

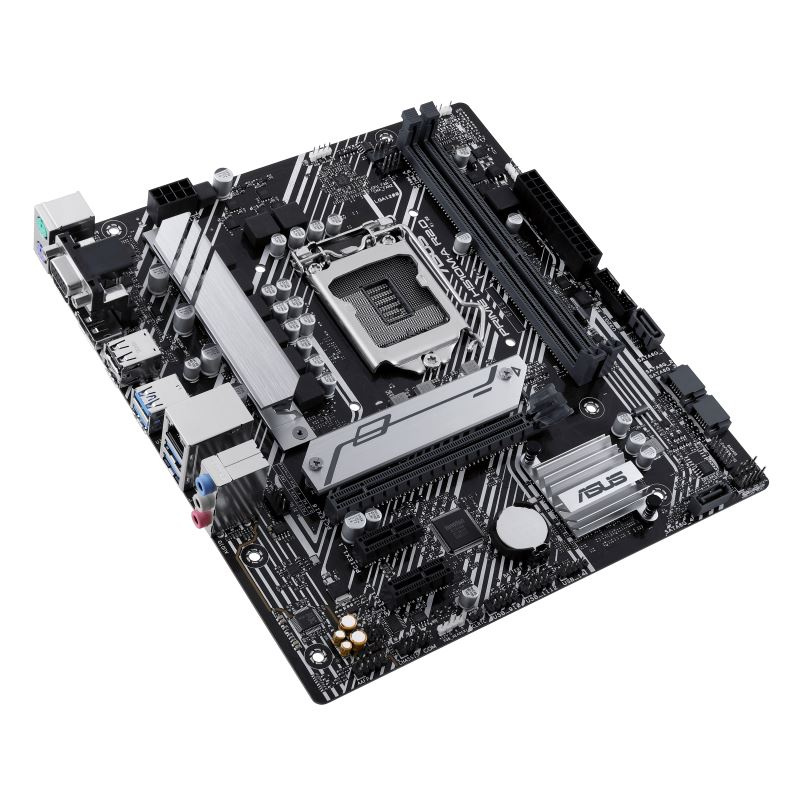

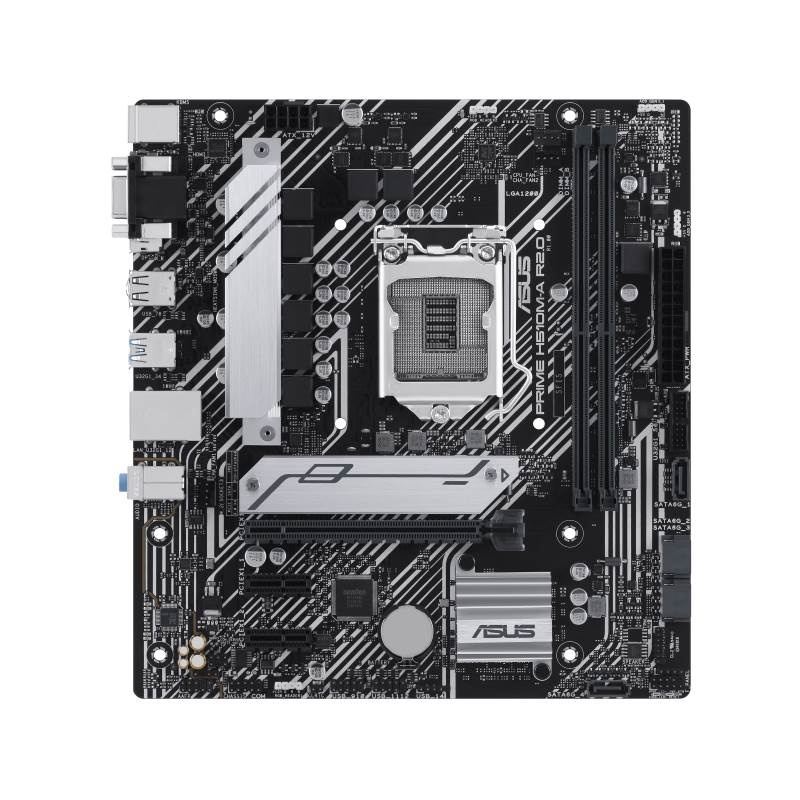

ASUS PRIME H510M-A R2.0

Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, DisplayPort/
HDMI™/VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps, AURA Addressable Gen 2 headers, AURA SYNC, Armoury Crate, Q-LED Core

  • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
  • Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • 5X Protection III: Multiple hardware safeguards for all-round protection


CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors*
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.



Chipset

Intel® H470 Chipset



Memory

2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
*11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.



Graphics

1 x DisplayPort 1.4**
1 x VGA
1 x HDMITM 2.1***
*Graphics specifications may vary between CPU types.
**Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
*** Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.



Expansion Slots

Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H470 Chipset
2 x PCIe 3.0 x1 slots



Storage

Total supports 1 x M.2 slot and 4 x SATA6Gb/s ports
Intel® H470 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports



Ethernet

1 x Realtek 1Gb Ethernet



USB

Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header support 1 additional USB 2.0 port



Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

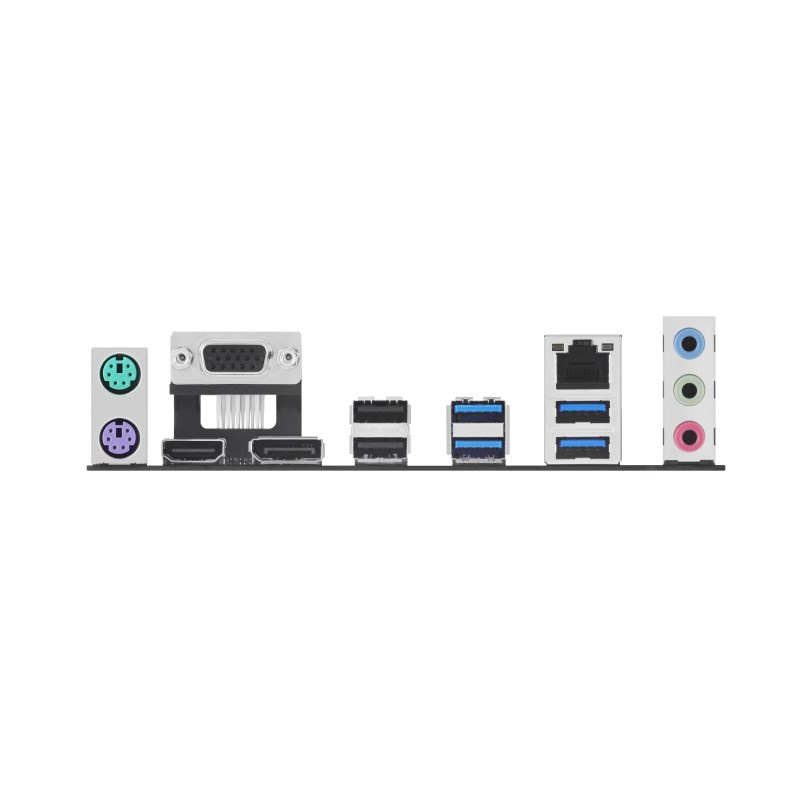

Back Panel I/O Ports

4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port



Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header support 1 additional USB 2.0 port
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header



Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers



Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS
EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



BIOS

128 Mb Flash ROM, UEFI AMI BIOS



Manageability

WOL by PME, PXE

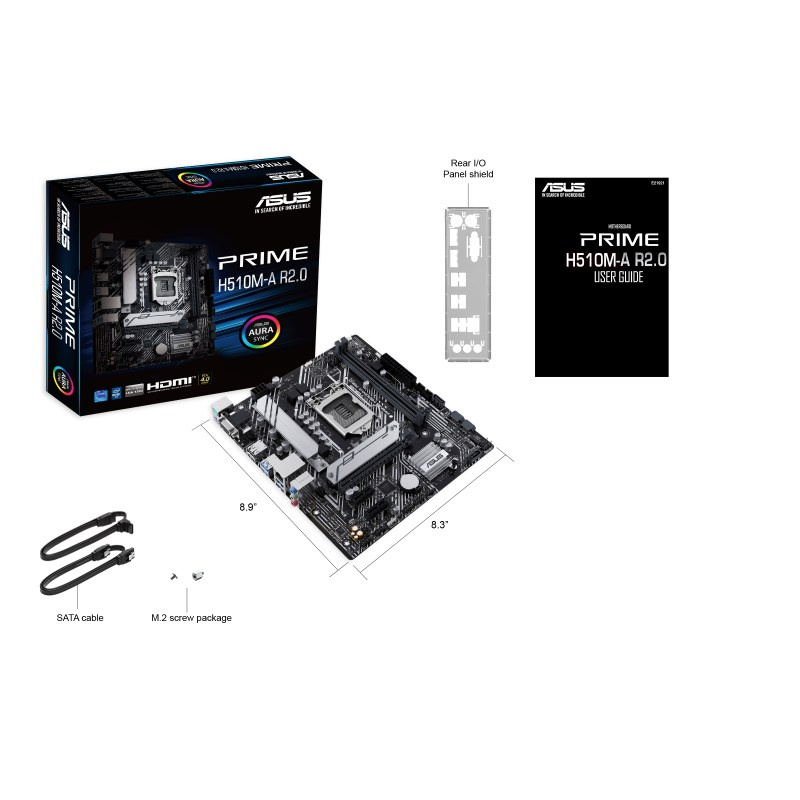

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Documentation
1 x User guide



Operating System

Windows® 10 64-bit



Form Factor

mATX Form Factor
22.6 cm x 21.1 cm


.
, ,
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1200
Formát základní desky
micro ATX
Chipset
Intel H470
PCI Express x16
1
Podpora RAID
Bez RAID podpory
COM port
Ano
LPT port
Ne
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
Intel
Počet paměťových slotů
2
DisplayPort
1
TPM
Ano
USB 2
7
USB 3
6
PCI
0
M.2 slot
1
SATA 3
4
VGA
1
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
2
USB C
0
LAN
1Gbit/s
DisplayPort Type-C
0
Počet Thunderbolt
0
PCI Express x8
0
