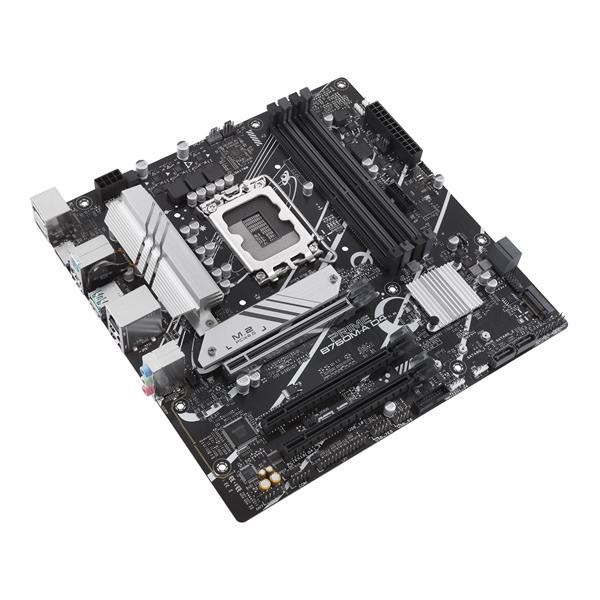

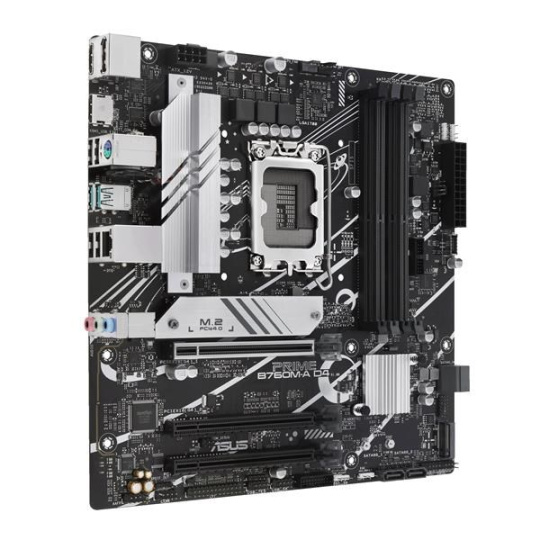

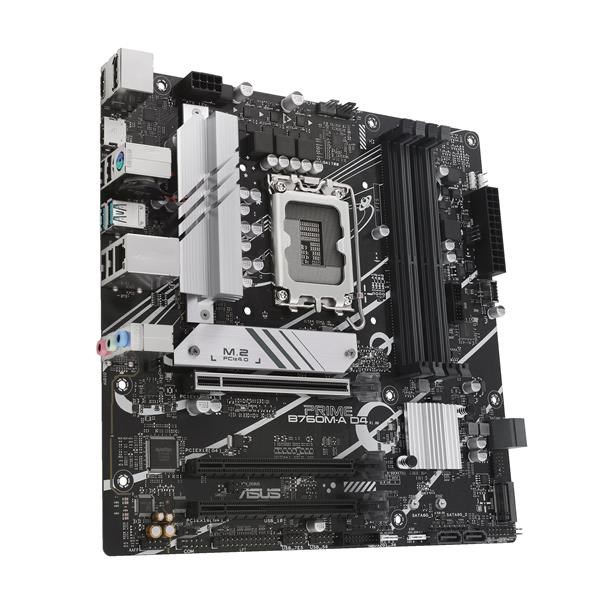

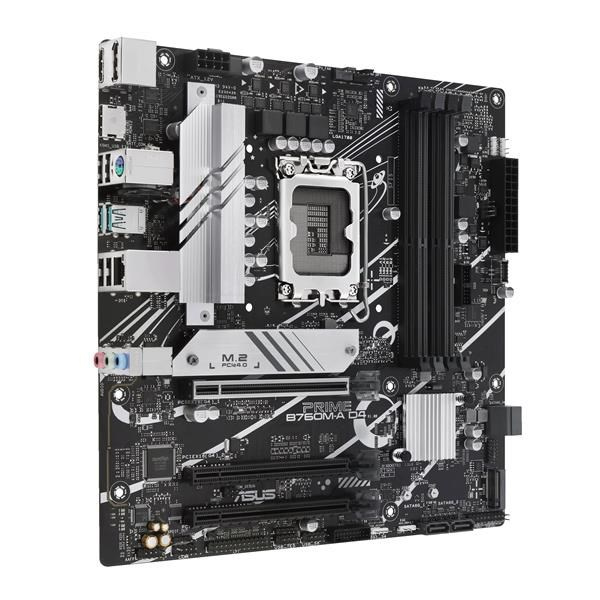

ASUS MB Sc LGA1700 PRIME B760M-A D4, Intel B760, 4xDDR4, 1xDP, 2xHDMI, mATX
PRIME B760M-A D4
TECHNICAL SPECIFICATIONS
CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
* Refer to www.asus.com for CPU support list. | |
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipset | Intel® B760 Chipset |
Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports Intel® Extreme Memory Profile (XMP) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
Graphics | 1 x DisplayPort** |
2 x HDMI® ports*** | |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
***Supports 4K@60Hz as specified in HDMI® 2.1. | |
Expansion Slots | Intel® 13th & 12th Gen Processors |
1 x PCIe 4.0 x16 slot | |
Intel® B760 Chipset | |
1 x PCIe 4.0 x16 slot (supports x4 mode) | |
1 x PCIe 4.0 x16 slot (supports x1 mode) | |
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel® 13th & 12th Gen Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
Intel® B760 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
4 x SATA 6Gb/s ports | |
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
USB | Rear USB (Total 6 ports) |
2 x USB 3.2 Gen 2 ports (2 x Type-A ) | |
4 x USB 2.0 ports (4 x Type-A) | |
Front USB (Total 10 ports) | |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
1 x USB 2.0 header supports 1 additional USB 2.0 port | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
Audio Features | |
- Audio Shielding | |
- Premium audio capacitors | |
- Dedicated audio PCB layers | |
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

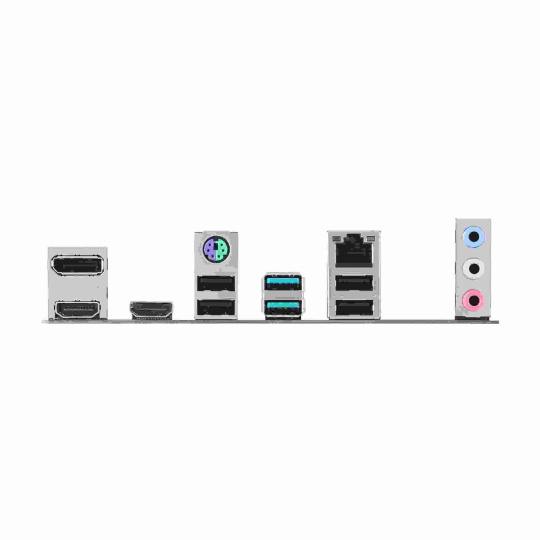

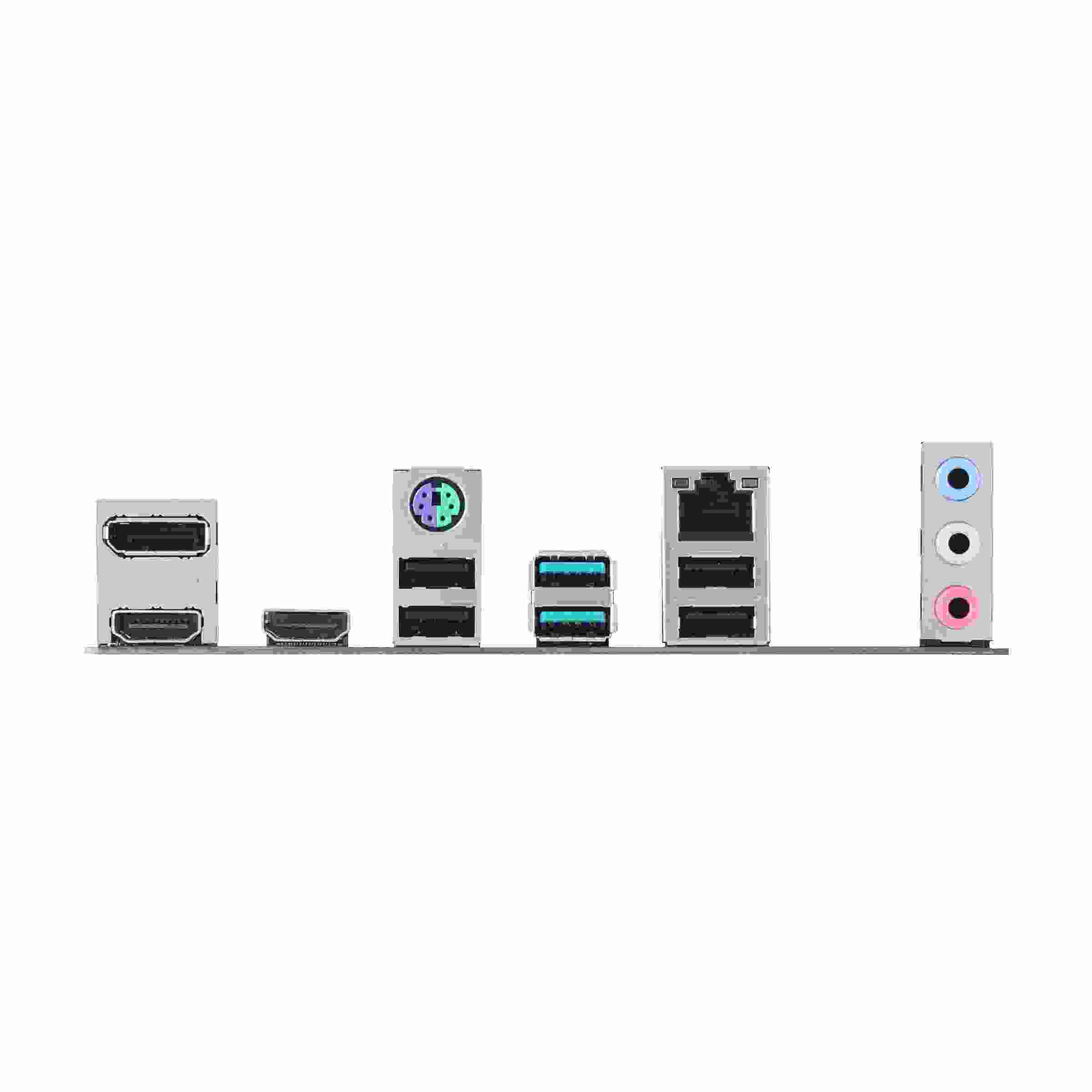

Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
4 x USB 2.0 ports (4 x Type-A) | |
1 x DisplayPort | |
2 x HDMI® ports | |
1 x Realtek 2.5Gb Ethernet port | |
3 x Audio jacks | |
1 x PS/2 Keyboard/Mouse combo port | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
2 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
Storage related | |
2 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
1 x USB 2.0 header supports 1 additional USB 2.0 port | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x LPT header | |
1 x S/PDIF Out header | |
1 x SPI TPM header (14-1pin) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
Special Features | ASUS 5X PROTECTION III |
- DIGI+ VRM | |
- LANGuard | |
- Overvoltage Protection | |
- SafeSlot Core+ | |
- Stainless-Steel Back I/O | |
ASUS Q-Design | |
- Q-DIMM | |
- Q-LED Core | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsink | |
- VRM heatsink design | |
ASUS EZ DIY | |
- ProCool | |
Aura Sync | |
- Aura RGB header | |
- Addressable Gen 2 RGB headers | |
Software Features | ASUS Exclusive Software |
Armoury Crate | |
- Aura Creator | |
- Aura Sync | |
- Fan Xpert 2+ | |
- Power Saving | |
AI Suite 3 | |
- Digi+ VRM | |
- PC Cleaner | |
ASUS CPU-Z | |
Norton Deluxe (60 Days Free Trial) | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
2 x SATA 6Gb/s cables | |
Miscellaneous | |
1 x I/O Shield | |
1 x M.2 Rubber Package | |
1 x M.2 SSD screw package | |
Documentation | |
1 x User guide | |
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor | mATX Form Factor |
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
, ,
ParametrePridať do porovnania
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1700
Formát základní desky
micro ATX
Chipset
Intel B760
COM port
Ano
LPT port
Ano
3.5mm Jack
Ano
Pro procesory
Intel
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
M.2 slot
2
SATA 3
4
VGA
0
DVI
0
HDMI
2
DisplayPort Type-C
0
