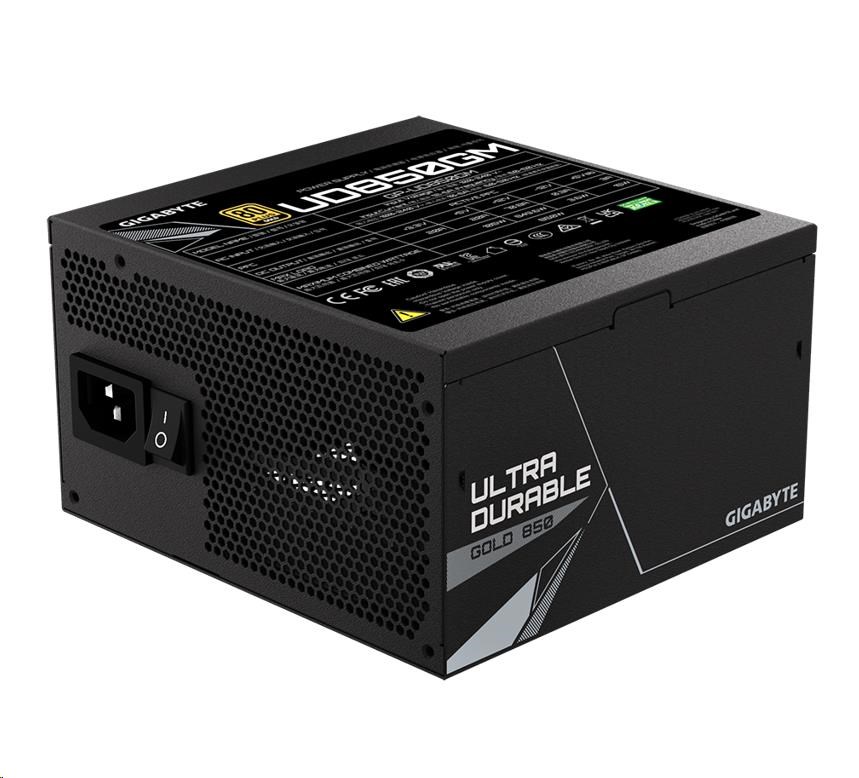

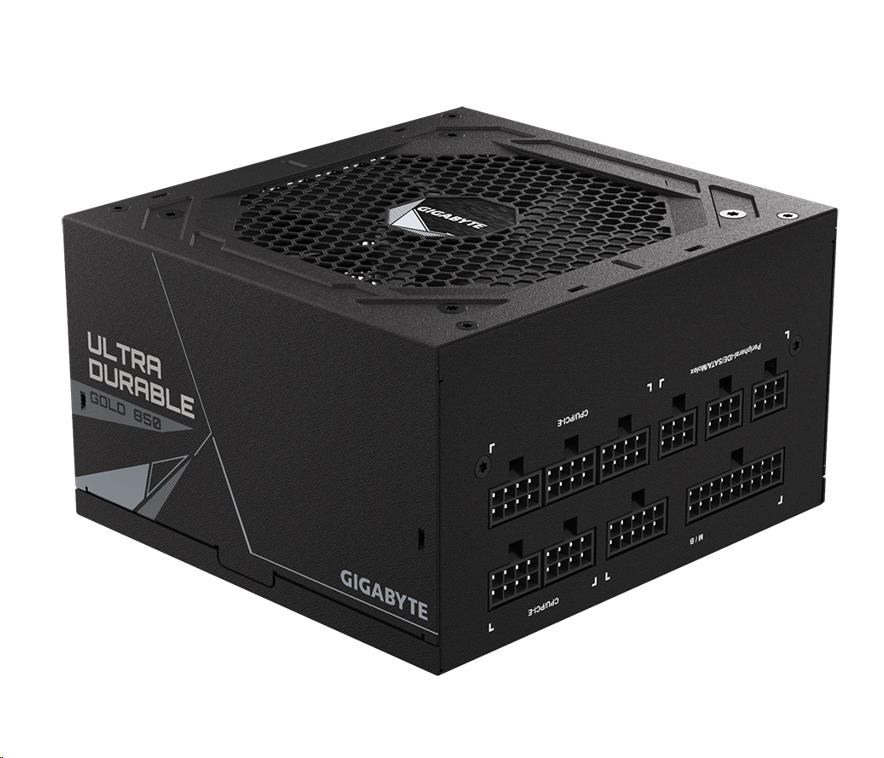

UD850GM

• Ultra Durable
  • Main Japanese capacitors
  • Enhanced thermal solution

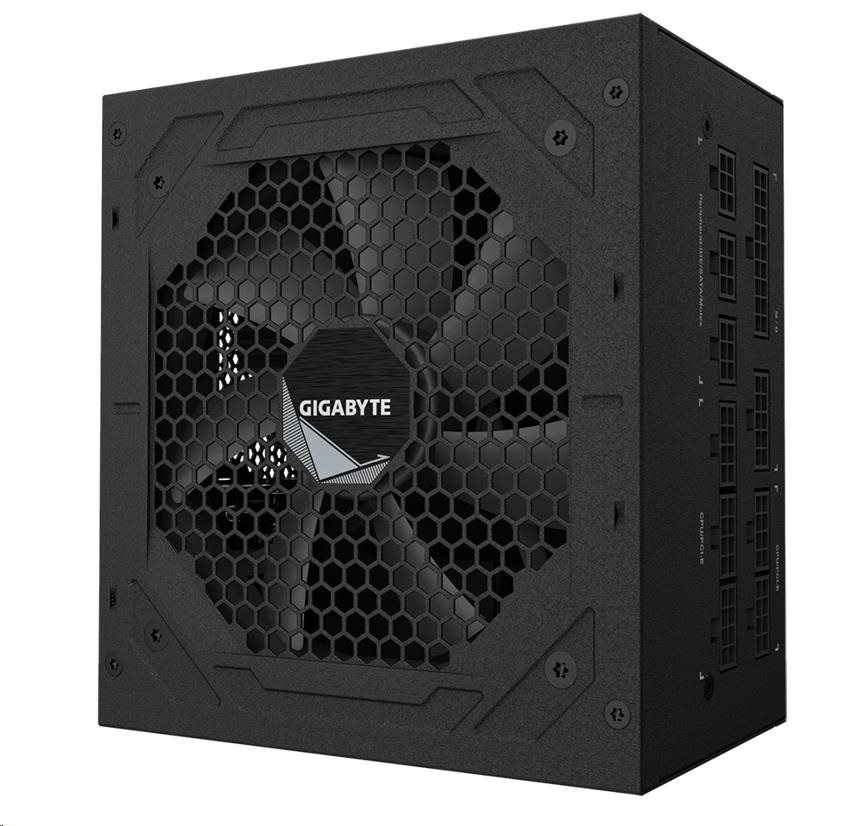

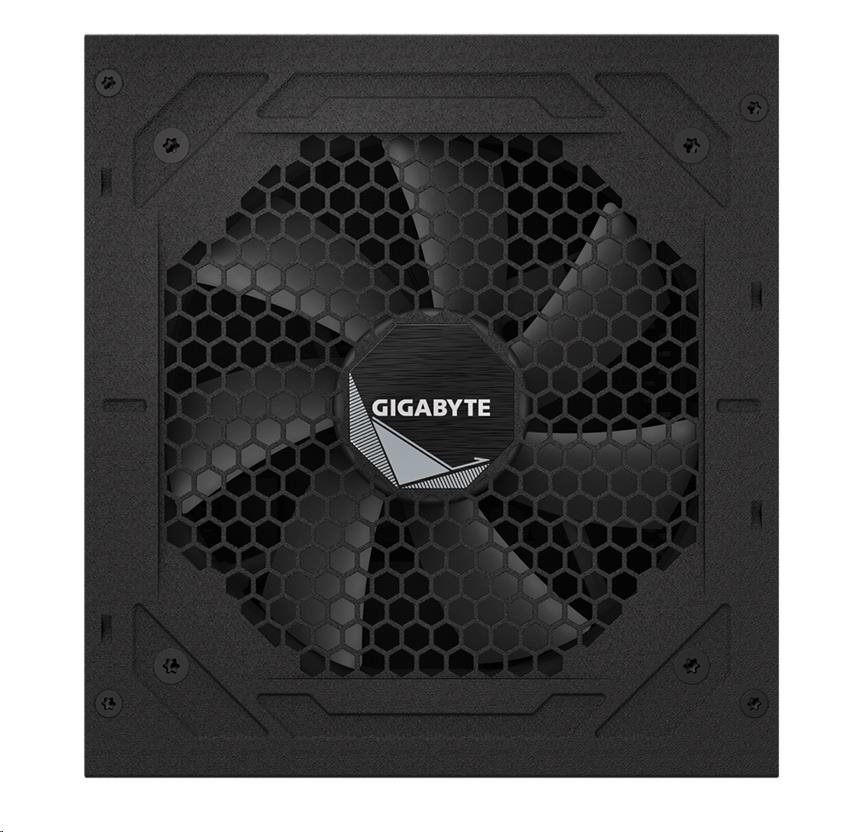

  • 120mm smart hydraulic bearing (HYB) fan
  • OVP/OPP/SCP/UVP/OCP/OTP protection

• 80 PLUS Gold certified

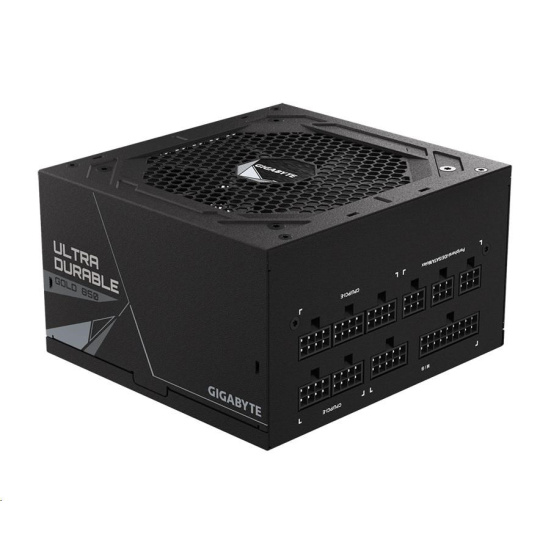

• Fully modular design
• Powerful single +12V rail
• Compact design
• 5 years warranty (Adjusted according to different regions)

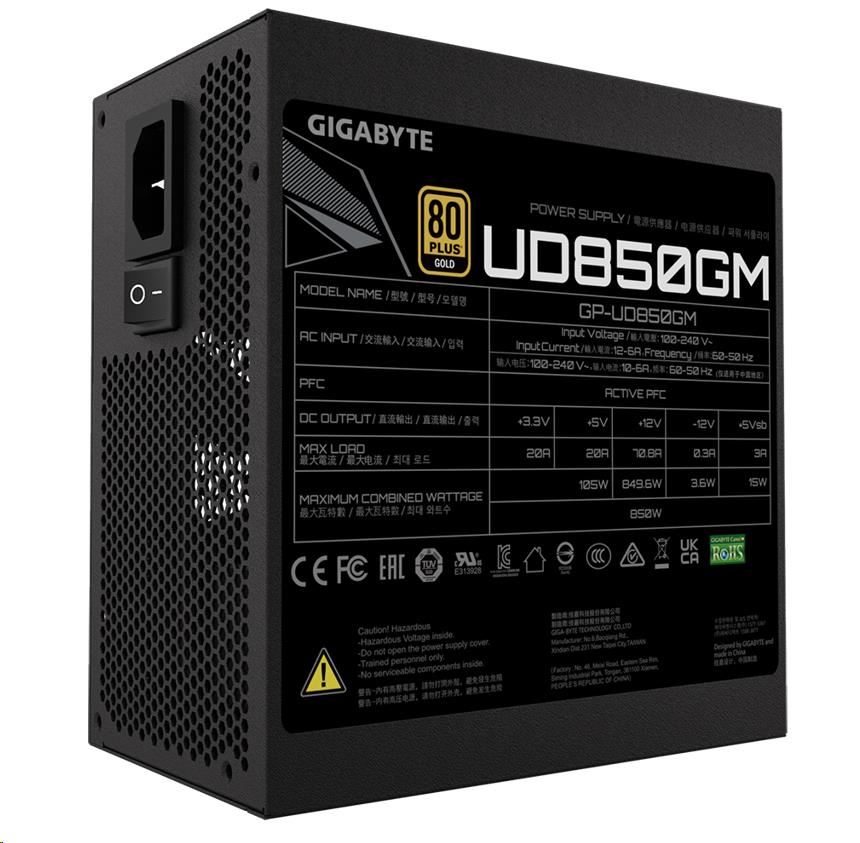

Model

GP-UD850GM

Type

Intel Form Factor ATX 12V v2.31

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

850W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

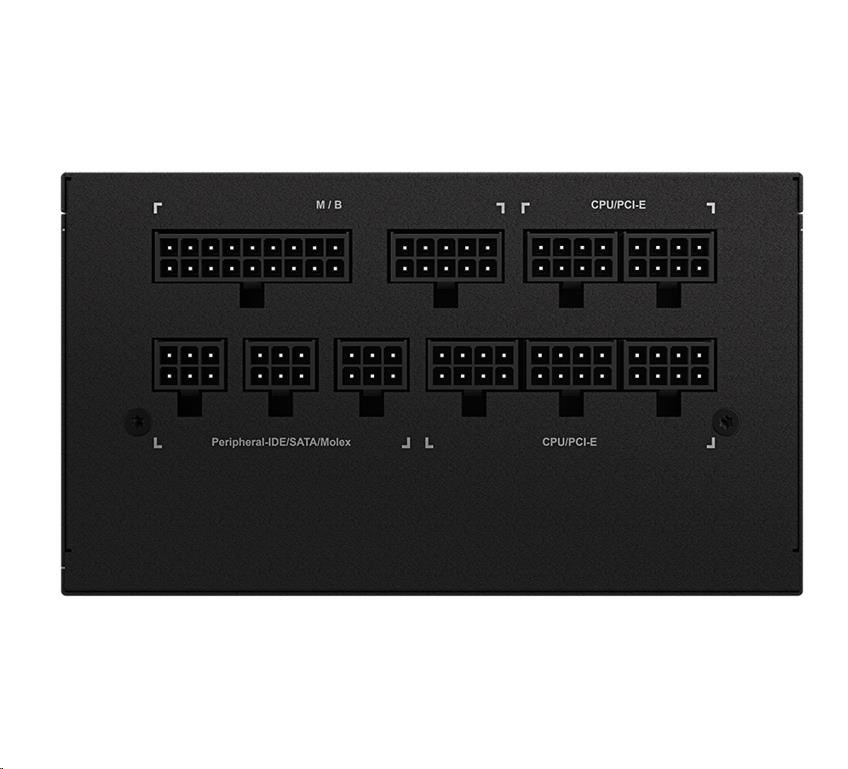

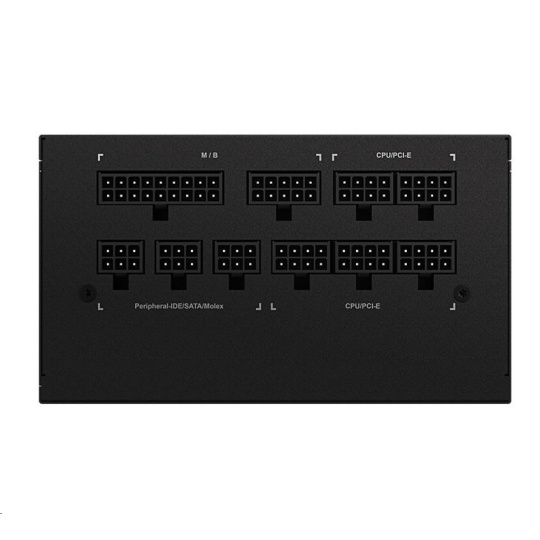

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
