Club3D kabel miniDP 1.4 na HDMI, 4K120Hz nebo 8K60Hz HDR10+, M/M, 1.8m
Club3D kabel miniDP 1.4 na HDMI, 4K120Hz nebo 8K60Hz HDR10+, M/M, 1.8m

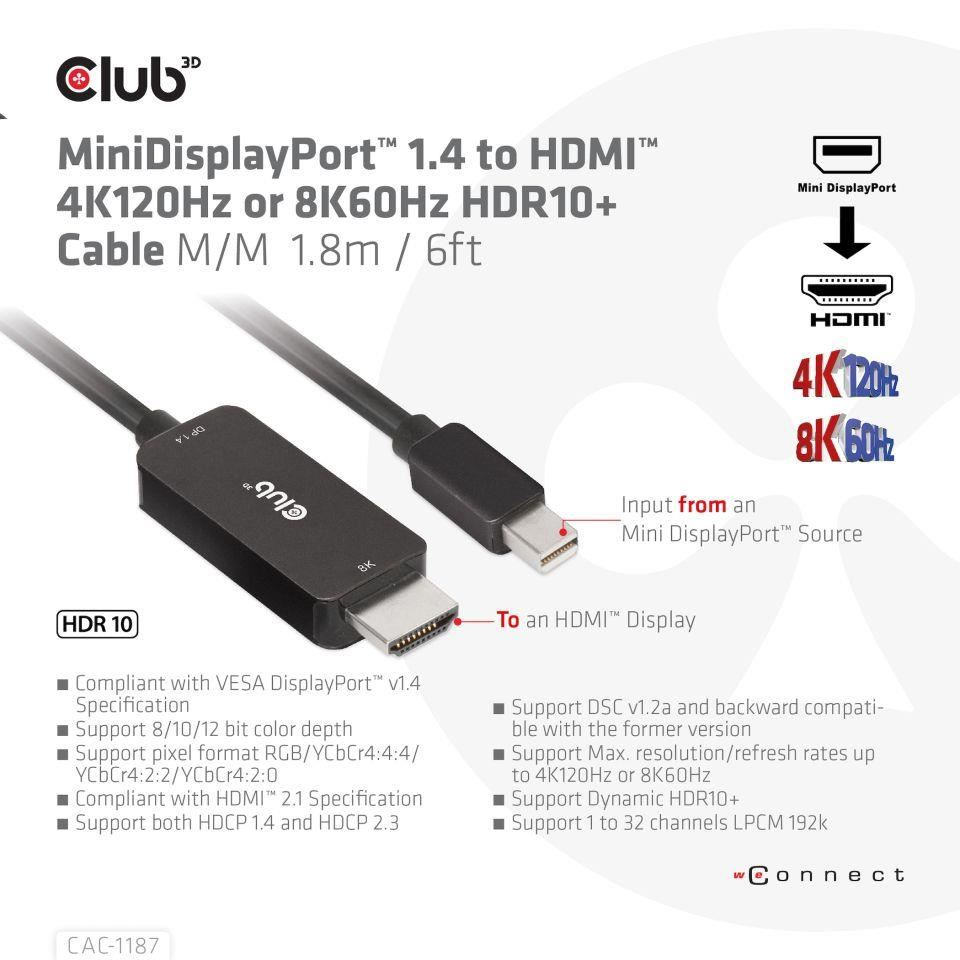

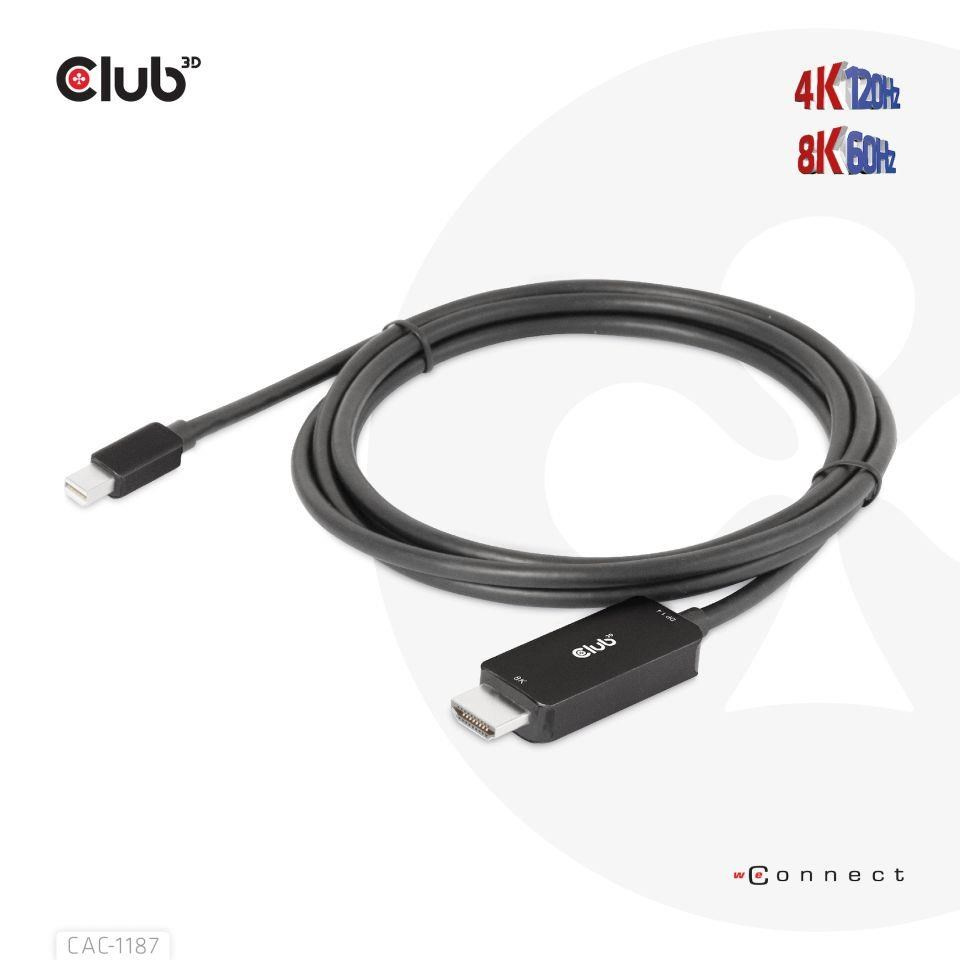

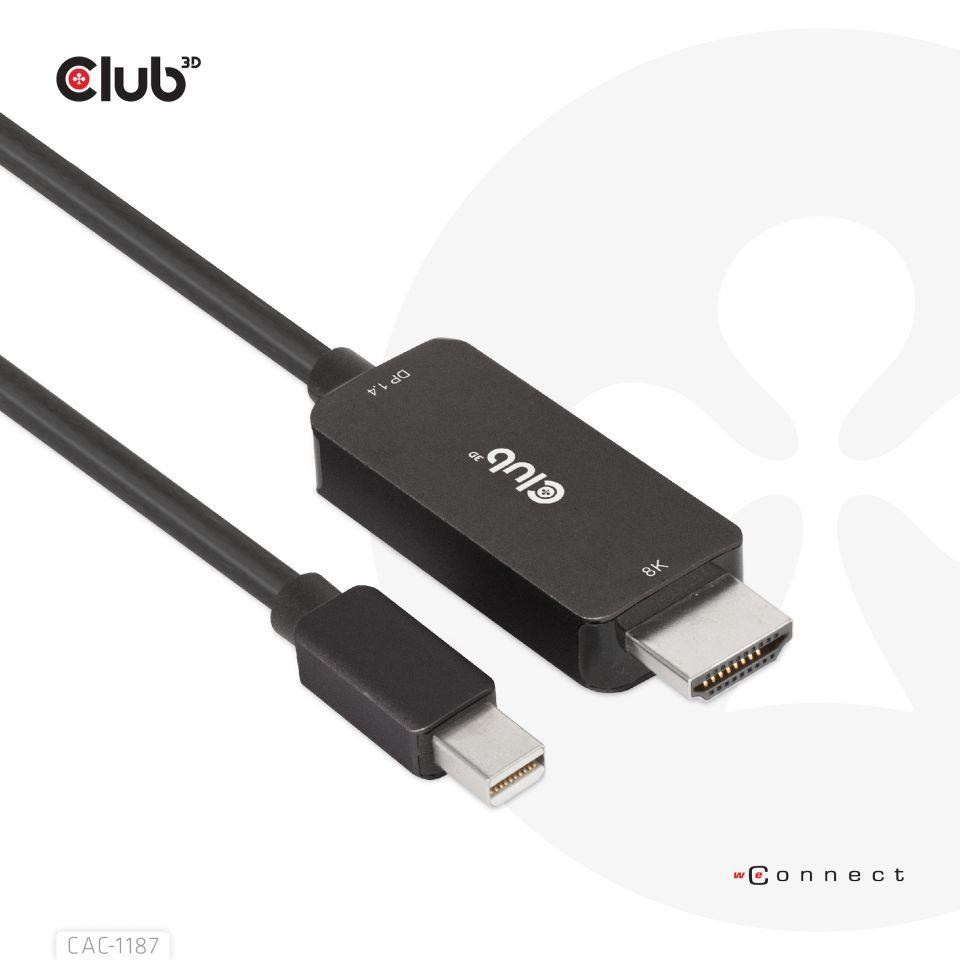

MiniDisplayPort 1.4 to HDMI 4K120Hz or 8K60Hz HDR10+ Cable M/M 1.8m / 6ft
MiniDisplayPort™ 1.4 ready PC or any other device that lacks the new HDMI™ 4K120Hz or 8K60Hz specification, the Club 3D CAC-1187 will be the simple way to upgrade your device and connect to your new TV.
With its DP1.4 DSC video compression technology, this adapter is able to convert DP1.4 video signals to HDMI™, supporting video display resolutions up to 8K (7680x4320/60HZ or 3840x2160/120Hz) and creating life like colors and movements with HDR10+ giving users the ultimate visual experience. The Adapter is powered thru the MiniDP™ port.
- Compliant with VESA DisplayPort™ v1.4 Specification
- Support 8/10/12 bit color depth
- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
- Compliant with HDMI™ 2.1 Specification
- Support both HDCP 1.4 and HDCP 2.3
- Support DSC v1.2a and backward compatible with the former version
- Support Max. resolution/refresh rates up to 4K120Hz or 8K60Hz
- Support Dynamic HDR10+
- Support 1 to 32 channels LPCM 192kHz audio output
- Supports HBR audio up to 1536kHz
TECHNICAL SPECIFICATIONS

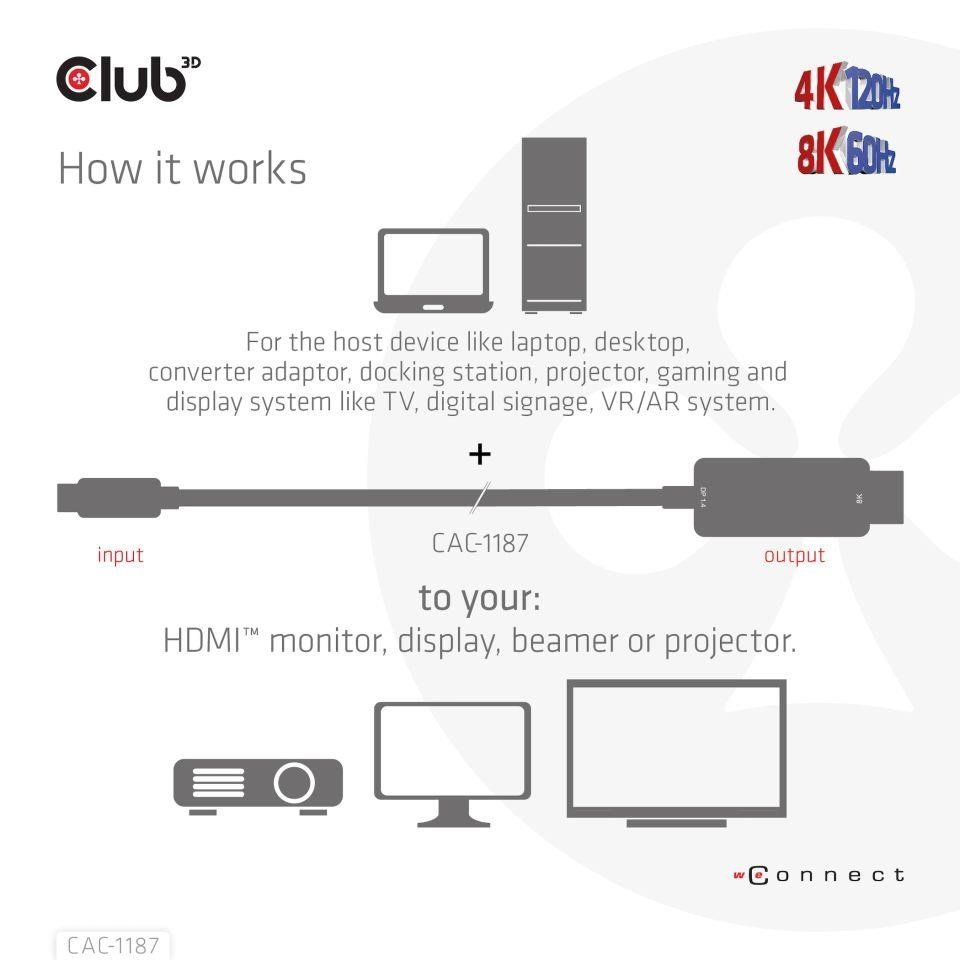

| Applications | • For the host device like laptop, desktop, video converter adaptor, docking station, projector, gaming and display system like TV*, digital signage, VR/AR system. • Perfect for Host Devices which are featured with the DP1.4 graphic card that supports MiniDP video signal output for gaming, commercial applications**. |
| Supported resolutions | • Support Max. resolution/timing up to 4K120Hz or 8K60Hz This adapter will function with lower specifications GPU’s, be aware performance will be reduced due to the specifications of that GPU !! |
| OS Support | • Microsoft, Mac OS |
| In the box | • CAC-1187 MiniDisplayPort™ 1.4 to HDMI™ 4K120Hz or 8K60Hz HDR10+ Cable M/M 1.8m / 6ft |
| Available Interfaces | Input: • 1x MiniDP (Male) Output: • 1x HDMI™ (Male) |

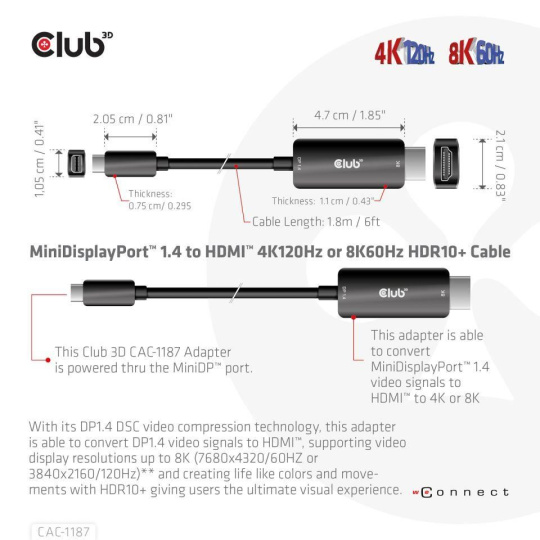

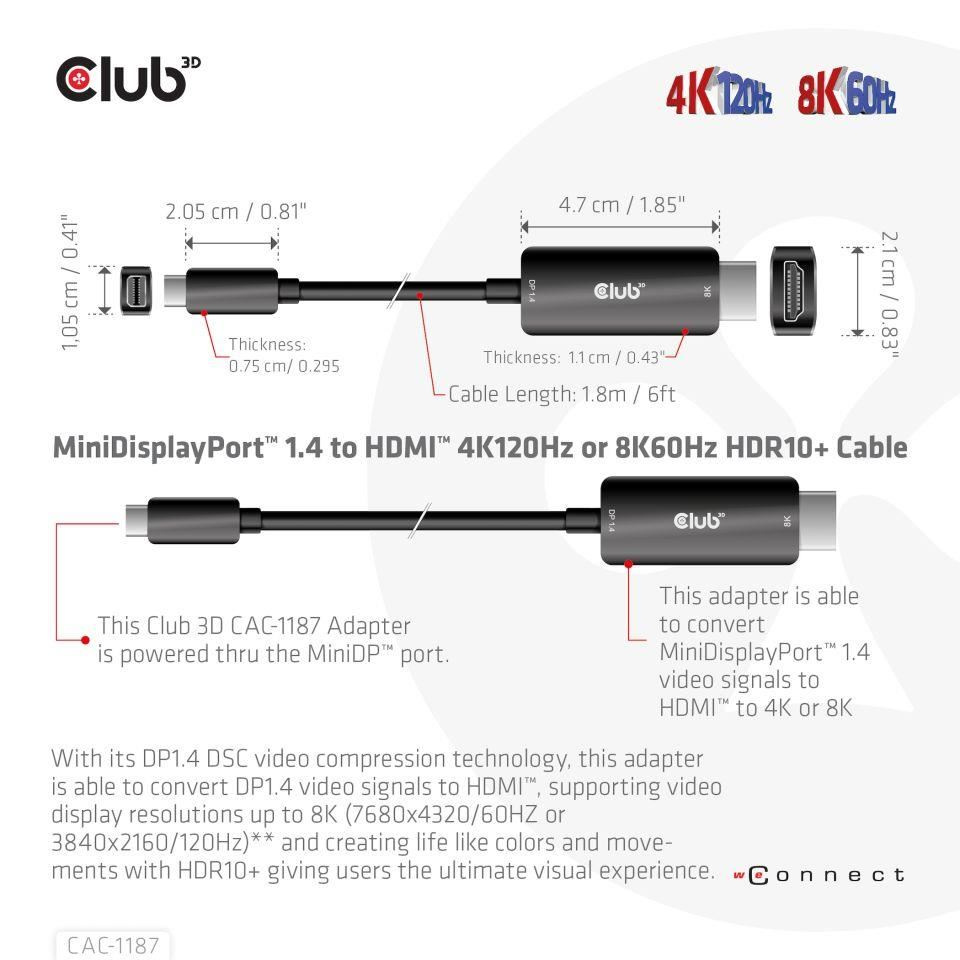

| Other info | • Box size: 14.5 x 14.5 x 4.5cm / 5.71 x 5.71 x 1.77" • Cable Length : 1.8m / 6ft • Connector dimensions: - MiniDisplayPort™ Male 3.42 x 1.06 x 0.8 cm / 1.35 x 0.42 x 0.31" - HDMI™ Male 6.3 x 2 x 1.1 cm / 2.48 x 0.79 x 0.43" • Cable Weight: 63 gr / 2.22 oz • Box Weight: 45 gr / 1.59 oz • LDPE Bag Weight: 5gr / 0.18 oz • Total Weight: 113 gr / 3.99 oz • Meets ROHS, FCC, and CE EMI requirements |
Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!
, ,
