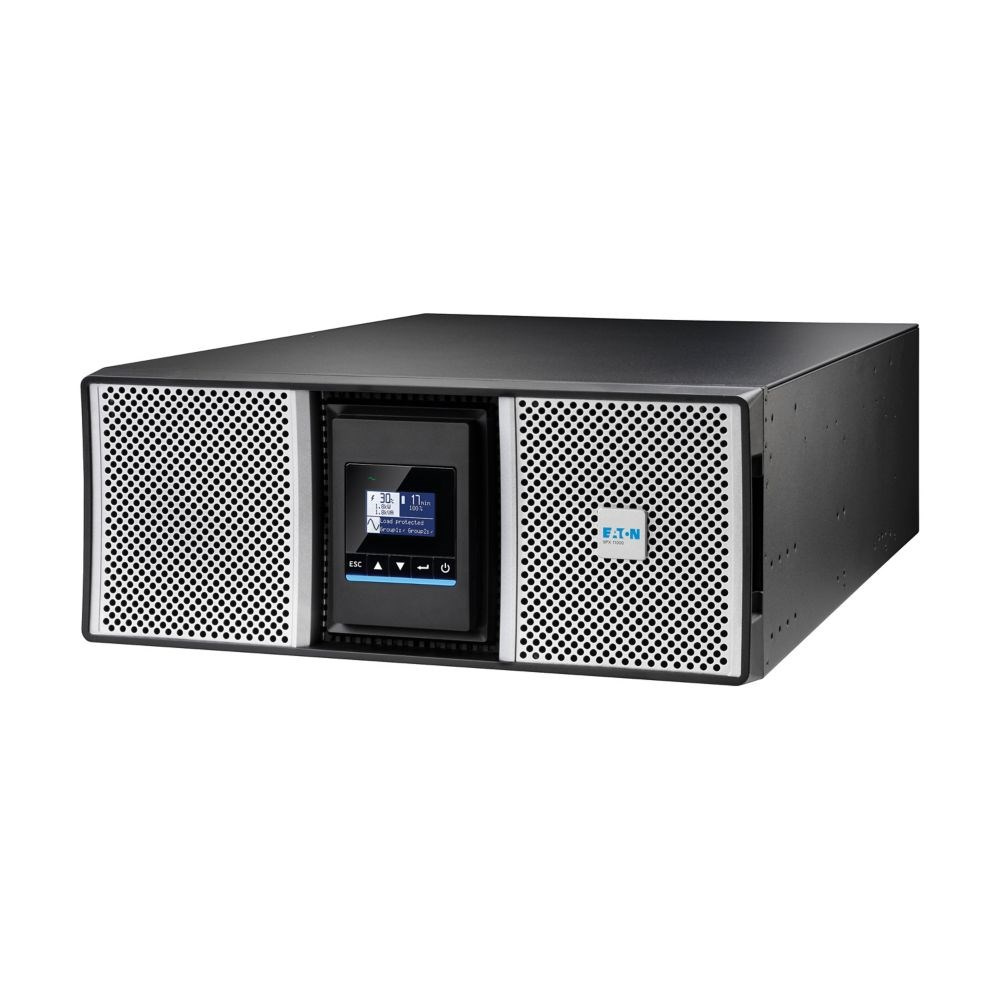

Eaton 9PX 8000i RT4U Netpack, UPS 8000VA, G2
Popis a parametre
Diskusia
Eaton 9PX 8000i RT4U Netpack, UPS 8000VA, G2
General specifications
| Product Name | Eaton 9PX Gen2 UPS |
| Catalog Number | 9PX8KIRTNG2 |
| EAN | 3553340710599 |
| Product Length/Depth | 724 mm |
| Product Height | 174 mm |
| Product Width | 440 mm |
| Product Weight | 78.8 kg |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM |
| Model Code | Eaton 9PX 8000i RT4U Netpack G2 |
Baterie
| Battery type | Sealed, lead-acid |

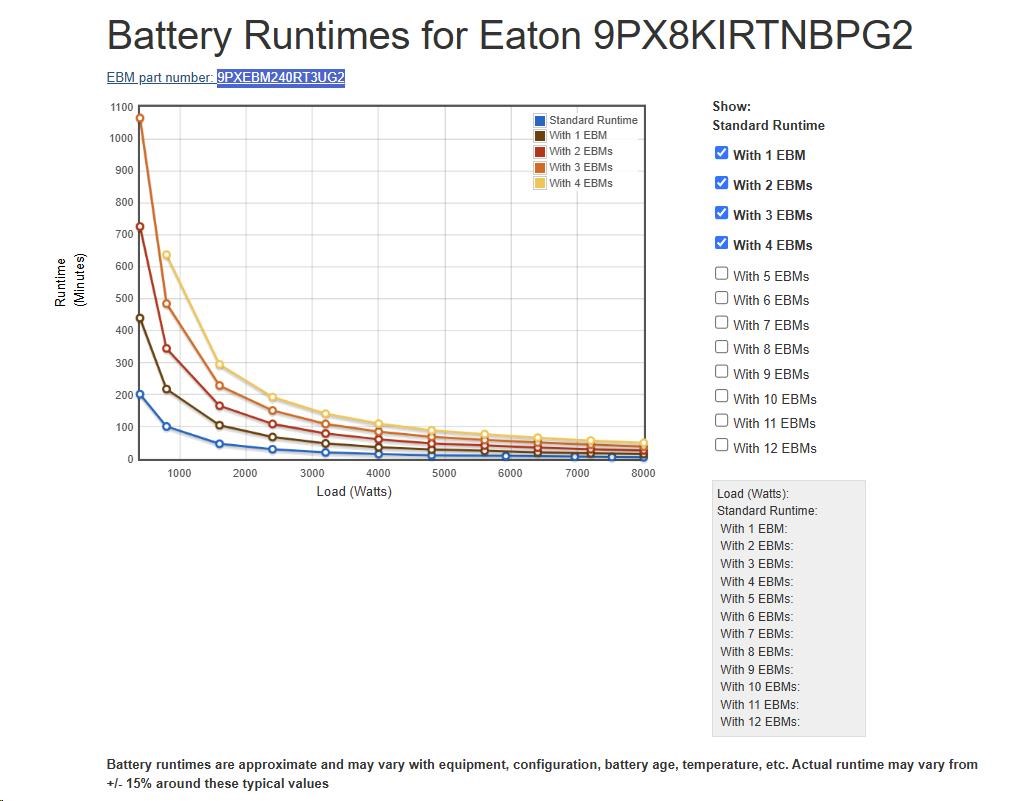

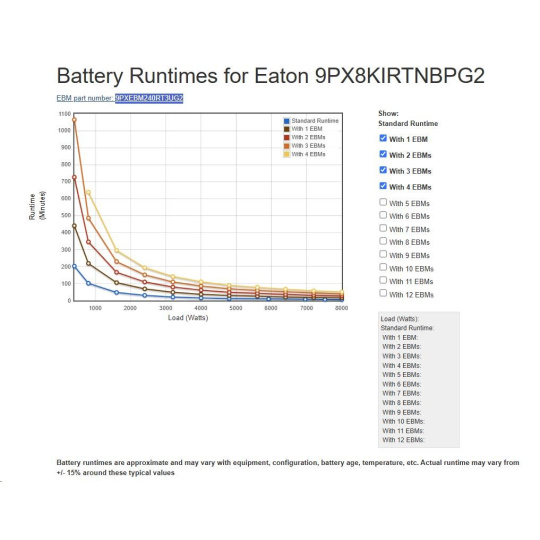

| Runtime graph | |
| Battery quantity | 20 |
| Battery management |
|
| Battery rating | 12 V / 9 Ah |
| Extended battery capability | Yes |
Výstup

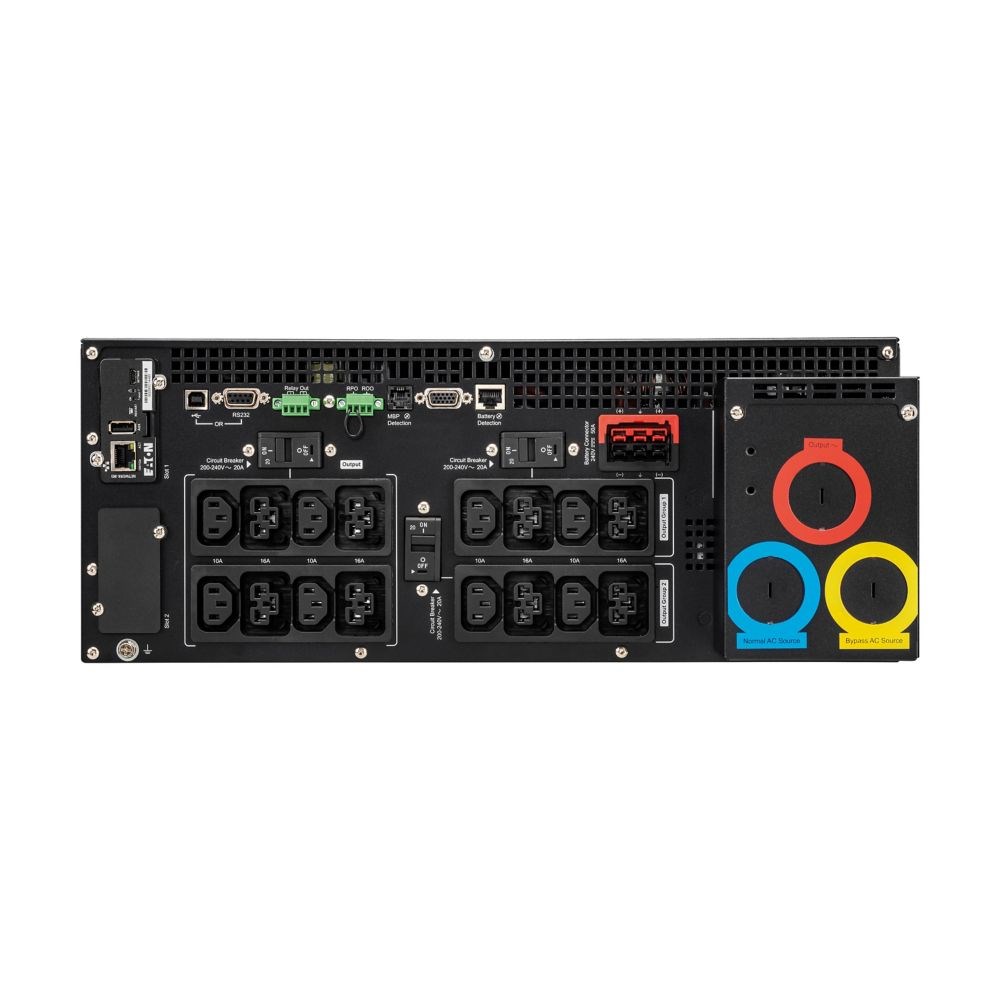

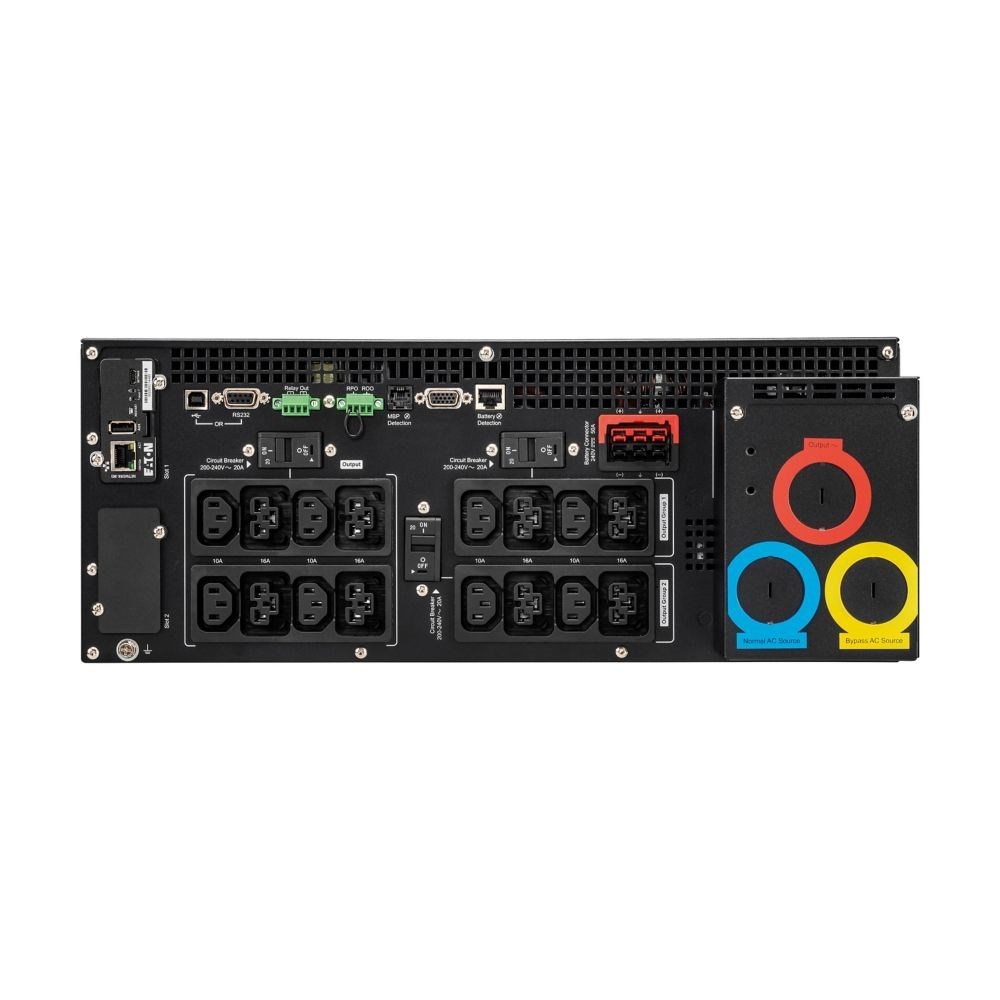

| Receptacle | (8) C13, (8) C39, Hardwired |
| Voltage | 230V |
| VA rating | 8 kVA |
| Wattage | 8 kW |
| Output power factor | 1 |
| Output voltage range | 200/208/220/230/240 V +/- 1% |
| Output waveform | Sine wave |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Voltage distortion output (linear load) - max | 1 |
| Feed type | 1 |
| Topology | Online/Double-conversion |
Vstup
| Nominal frequency | 50/60 Hz |
| Input power factor | >.99 |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Input frequency range | 40-70 Hz |
Novinky a informační sdělení
| Includes network card | Yes |
| Communication |
|
| Ethernet interface | Yes |
| User interface | Multilingual graphical LCD display |
| Potential free switch contact | Yes |
| Expansion slots | 2 slots, network card included |
| Software compatibility | Eaton Brlightlayer Software suite |
| Type of interface | Other |
Prostředí
| Altitude | 3000 m |
| Noise level | <37 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Relative humidity | 0-95% non-condensing |
Další specifikace
| Construction type | 482.6 mm (19 inch) device |
| Package contents |
|
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Color | Black/silver |
| Efficiency at max. load | 97.3 |
| Rack mounting kit | Yes |
| Hot swap power | No |
, ,
ParametrePridať do porovnania
Počet výstupních zásuvek
4
Použití
Data Center
Použití
Server
Zdánlivý výkon VA
8000
Topologie
On-Line
Provedení
Tower/Rack
Fáze (Vstup/Výstup)
1:1
Možnosti
Prodloužení záložního času
Výška v Racku
6U
Typ výstupu
IEC 19
Typ výstupu
Svorkovnice
