FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum

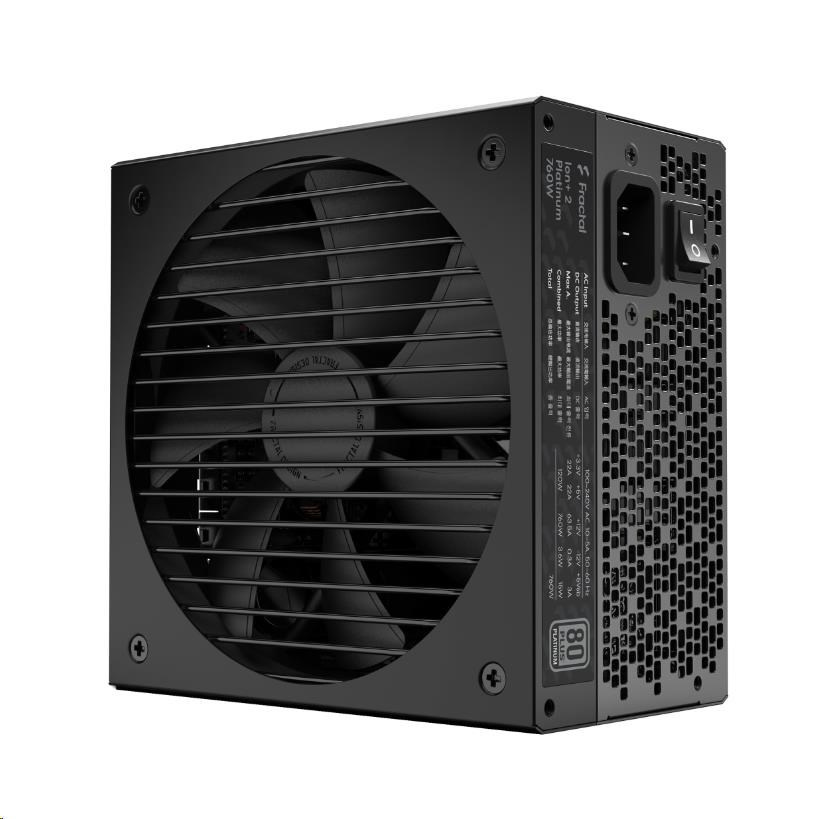

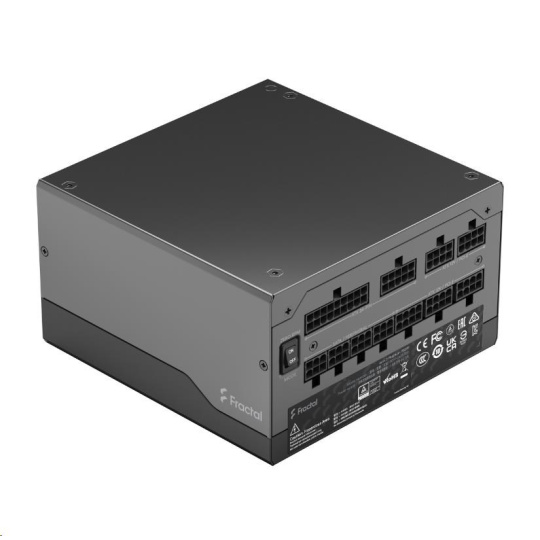

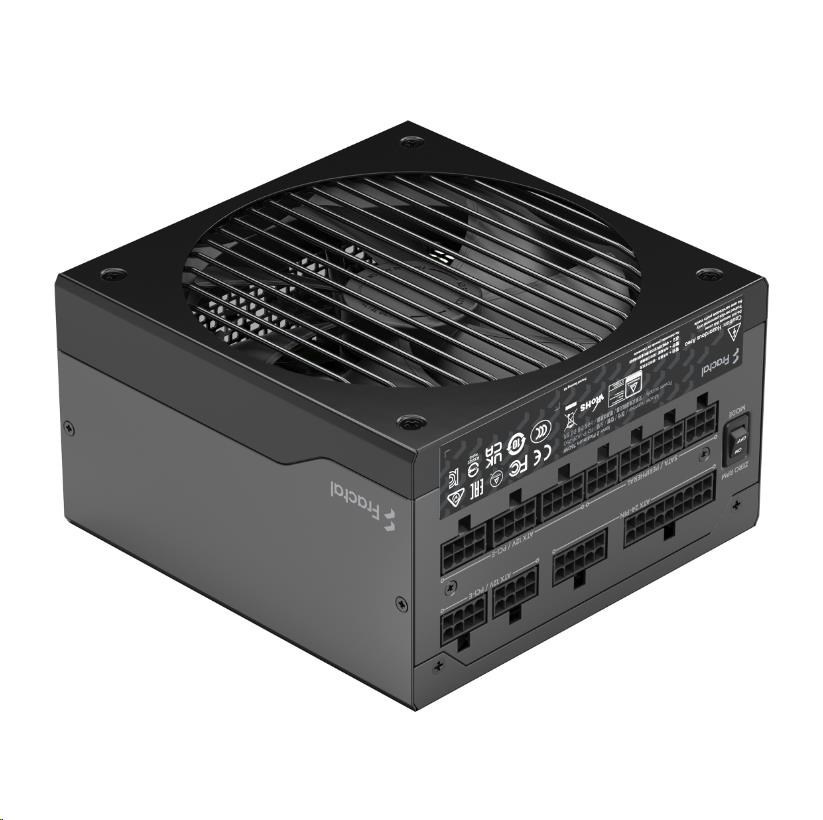

Ion+ 2 Platinum 760W
The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.
- 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
- Great electrical output quality with tight voltage regulation and low ripple and noise

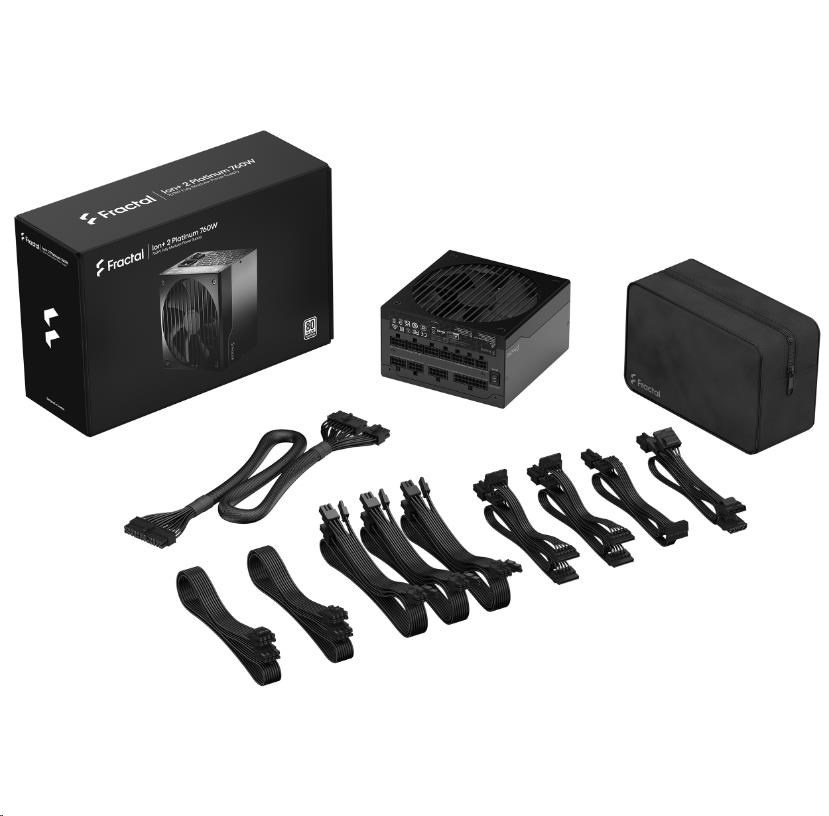

- Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
TECHNICAL SPECIFICATIONS
80PLUS® certification | Platinum |
Modular cables | Fully Modular |

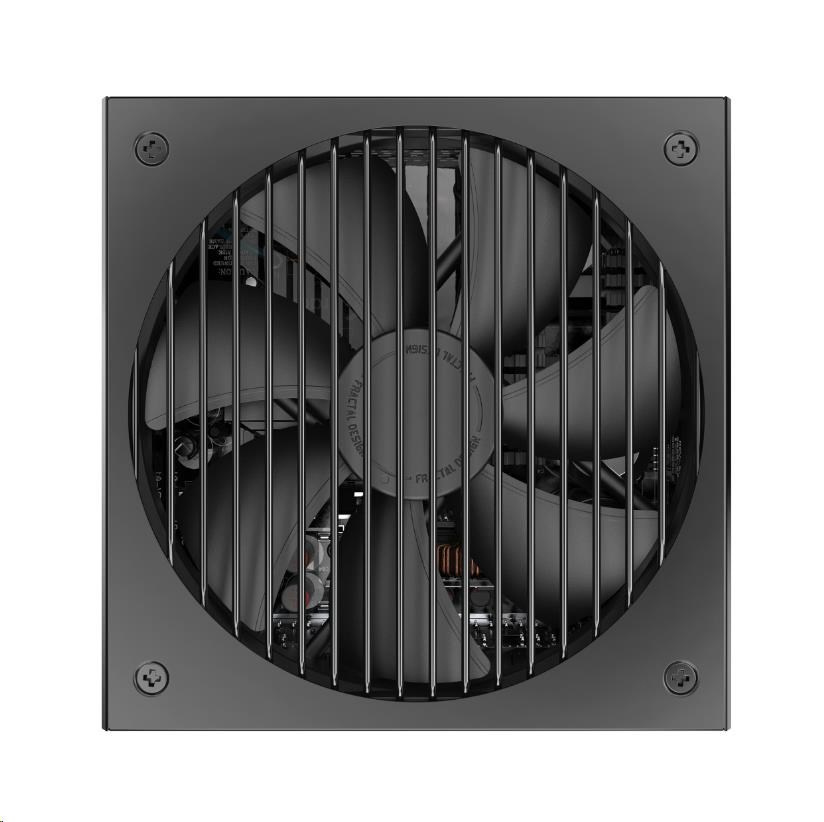

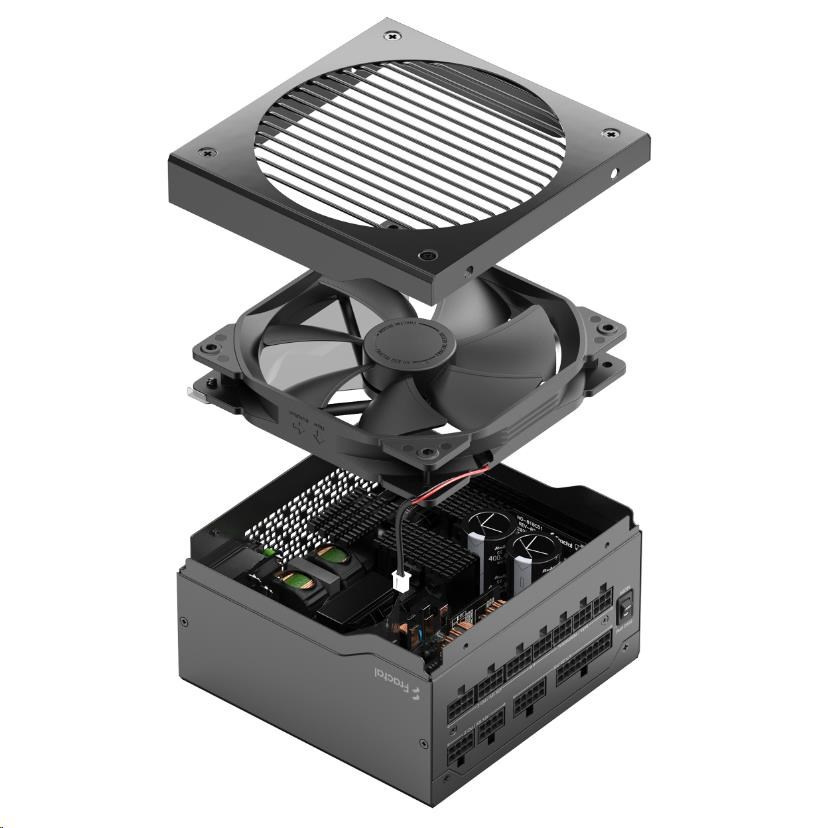

Fan type | 140 mm FDB bearing Fractal Design Dynamic series fan |
Maximum operating temperature (full load) | 50°C |
Semi-passive operation | Yes, user selectable (Zero RPM) |

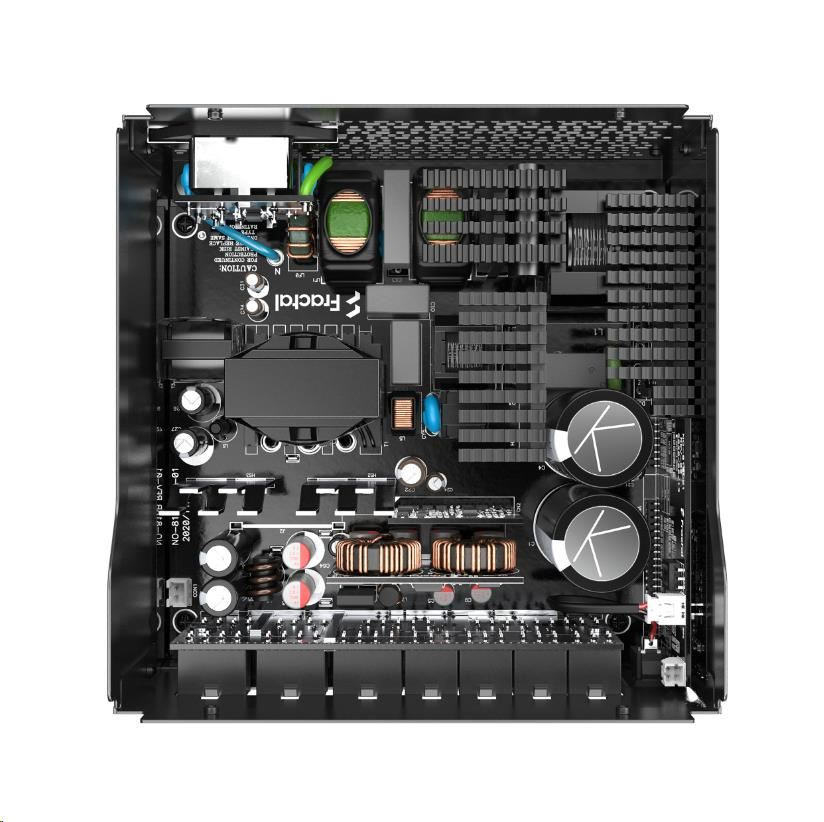

Capacitors | Japanese |
Life expectancy | 100,000 hours |
Cable type | Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires |
Input voltage | 100-240V C |
Input frequency | 50-60 Hz |
Input current | 10A/5A |
Protection features | Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection |
PSU specification compliance | ATX12V 2.52; EPS12V 2.92 |
Sleep state compliance | C6/C7 |
Approvals & certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC |
Warranty | 10 years |

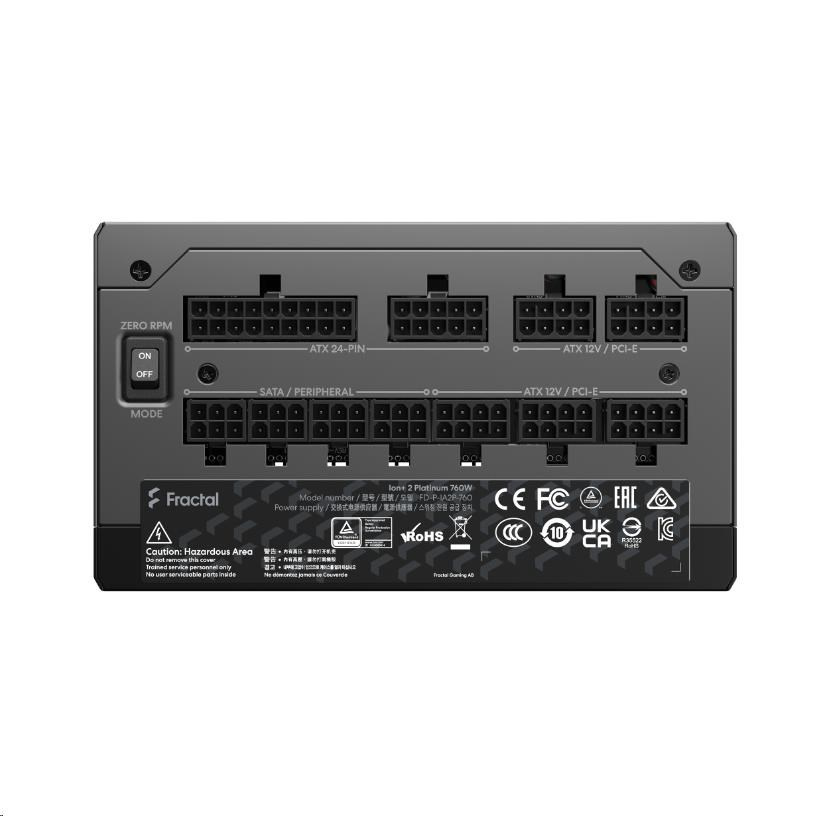

Connectors | |
ATX 24-pin | 1 |
ATX12V 4+4 pin / EPS12V 8-pin | 2 |
PCIe 6+2 pin | 6 |
SATA | 10 |
Peripheral | 4 |

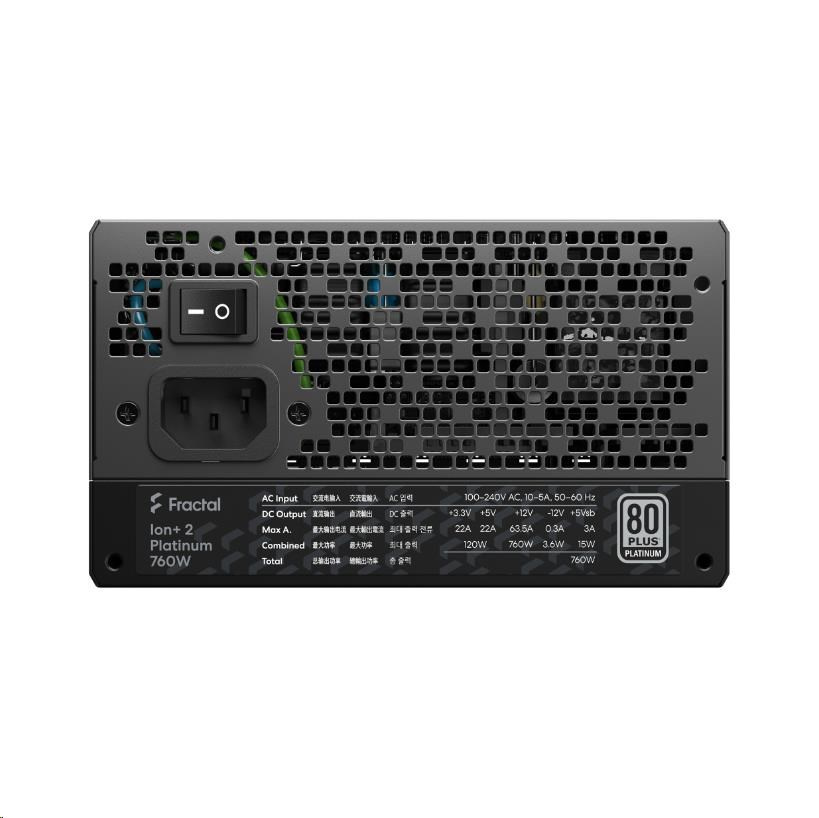

DC Output | |
3.3V | 22A |
5V | 22A |
3.3V and 5V combined | 120W |
12V | 63.3A |
-12V | 0.3A |
+5Vsb | 3A |
Total Power | 760W |
Cable Configuration (length in mm between connectors) | |
ATX 20+4 pin | 600 |
ATX 12V 4+4 pin | 700 |
EPS12V 8-pin | 600 |
PCIe 6+2 pin | 550+120 |
SATA | 400+150+150+150 mm & 650+150mm |
Peripheral | 400+150+150+150 mm |
.
, ,
ParametrePridať do porovnania
Konektory
SATA 15-pin
Konektory
PCIe 8-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Platinum
Modulární kabeláž
Ano
Výkon zdroje (W)
760
