GIGABYTE MB Sc AM5 X670E AORUS MASTER, AMD X670, 4xDDR5, 1xDP, 1xHDMI, WI-FI, E-ATX

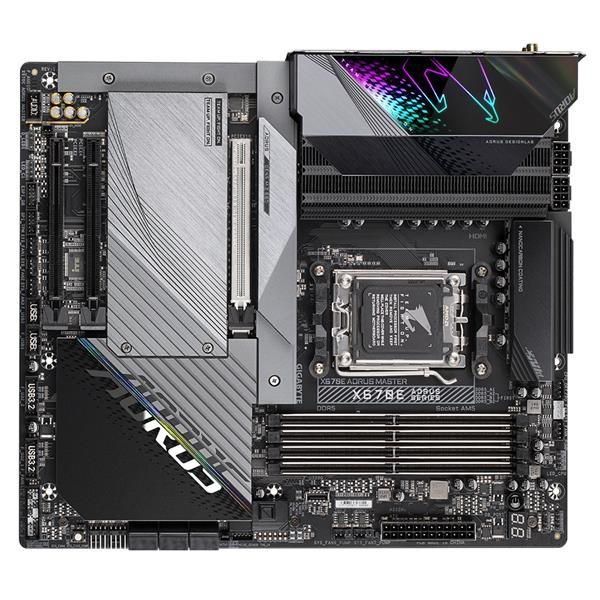

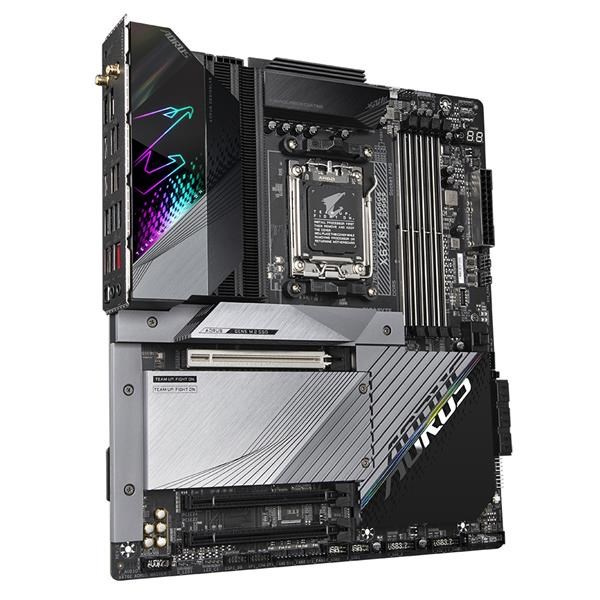

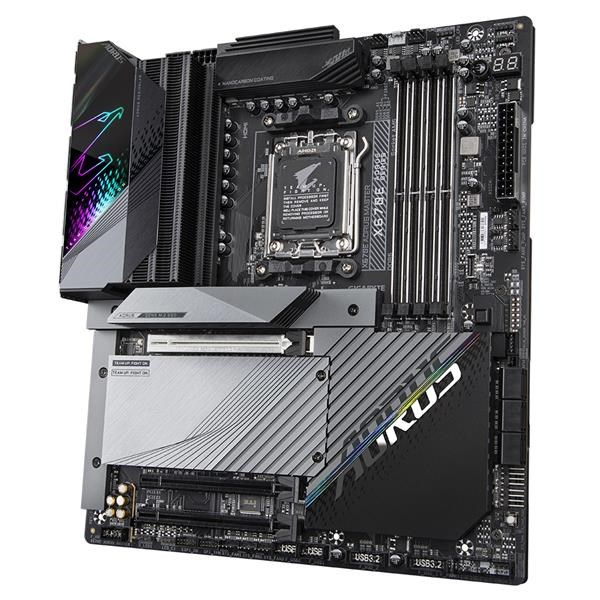

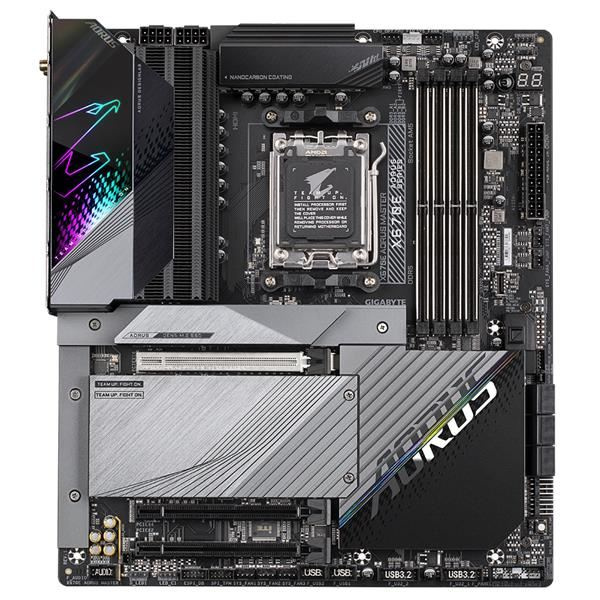

GIGABYTE X670E AORUS MASTER

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

  • AMD Socket AM5:Supports AMD Ryzen™ 7000 Series / Ryzen™ 8000 Series Processors
  • Unparalleled Performance:Twin 16*+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage:2*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Fins-Array III & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch Plus:SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Hi-Fi Audio with DTS:X® Ultra:ALC1220 CODEC
  • Fast Networks:Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:DP, HDMI, USB-C® with DP Alt Mode, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card


CPU

AMD Socket AM5, support for : AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
(Please refer "CPU Support List" for more information.)



Chipset

AMD X670



Memory

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)



Onboard Graphics

Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)



Audio

Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel output
* You can change the functionality of an audio jack using the audio software. To configure
7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out



LAN

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless Communication module

Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)



Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)



Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSD
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSD
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSD
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
6 x SATA 6Gb/s connectors
* The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices



USB

CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel



Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points

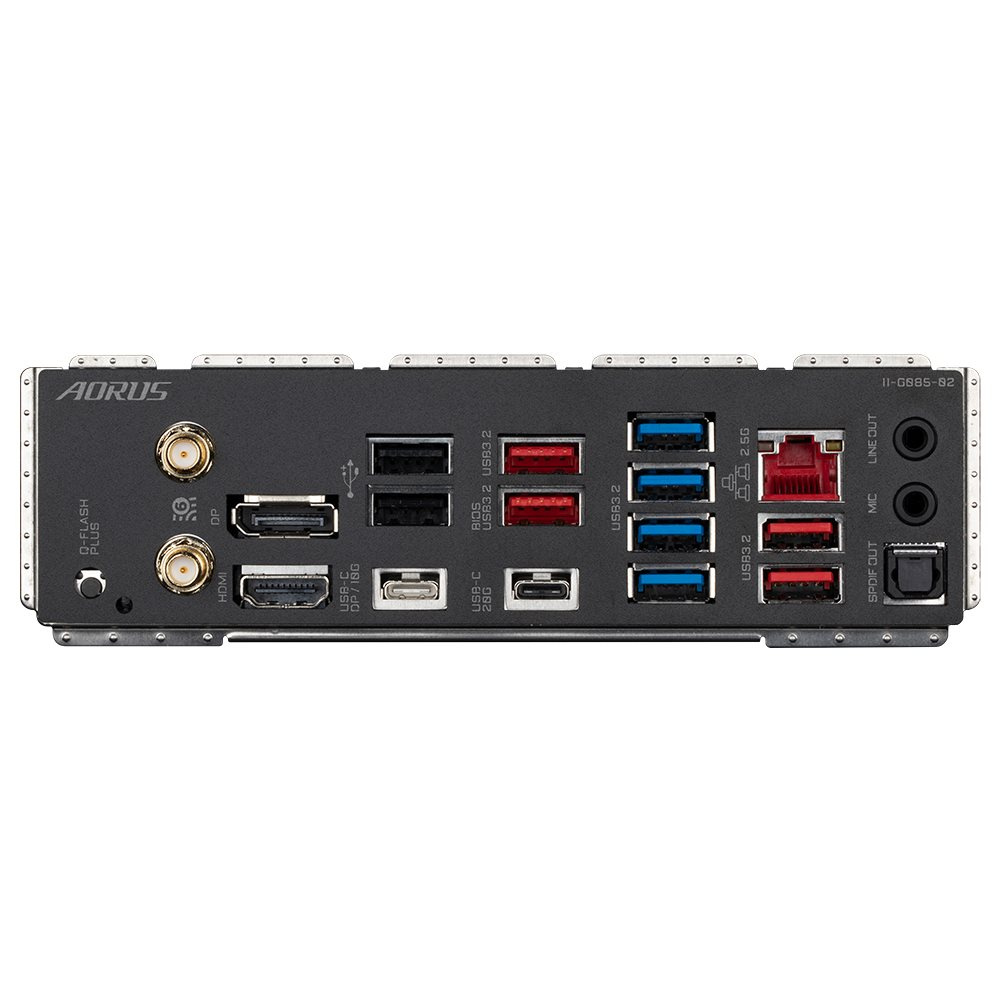

Back Panel Connectors

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks



I/O Controller

iTE® I/O Controller Chip



H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
Noise detection



BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup



Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software



Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit



Form Factor

E-ATX Form Factor; 30.5cm x 26.9cm


.
, ,
Technologie paměti RAM
DDR5
Socket (patice)
Socket AM5 (LGA 1718)
Formát základní desky
E-ATX
Chipset
AMD X670
PCI Express x16
3
Podpora RAID
0
Podpora RAID
1
Podpora RAID
10
LPT port
Ne
3.5mm Jack
Ano
Bezdrátové připojení
WiFi + Bluetooth
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
USB 2
6
USB 3
10
M.2 slot
4
SATA 3
6
HDMI
1
Led Header
Ano
USB C
3
LAN
2.5Gbit/s
