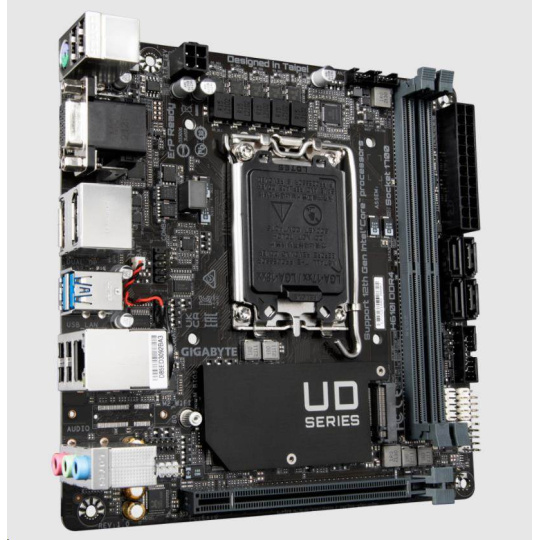

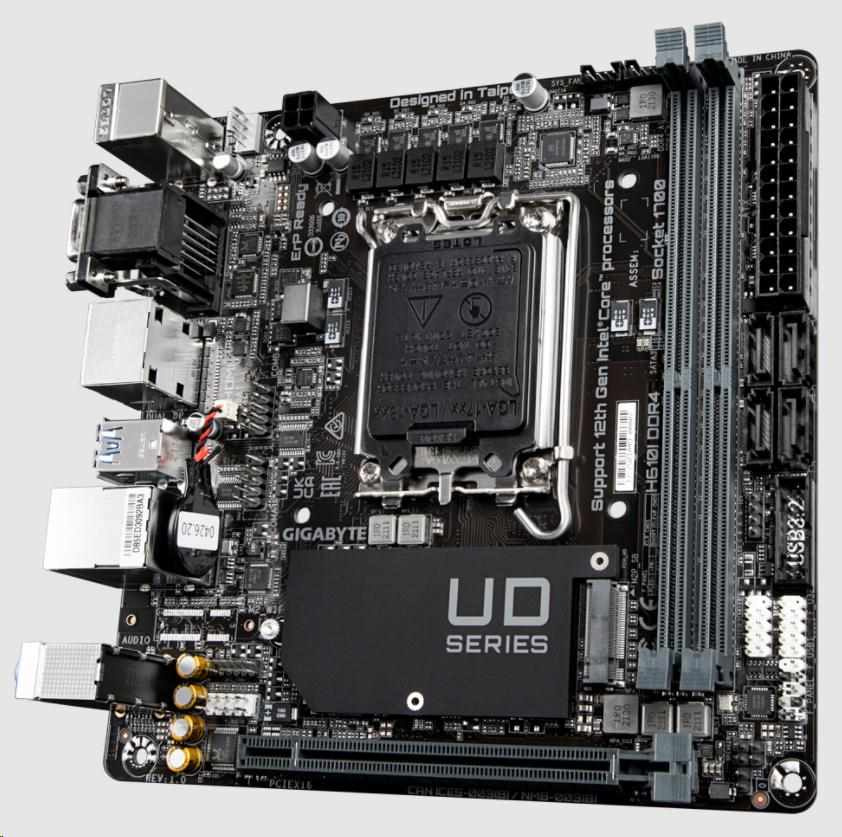

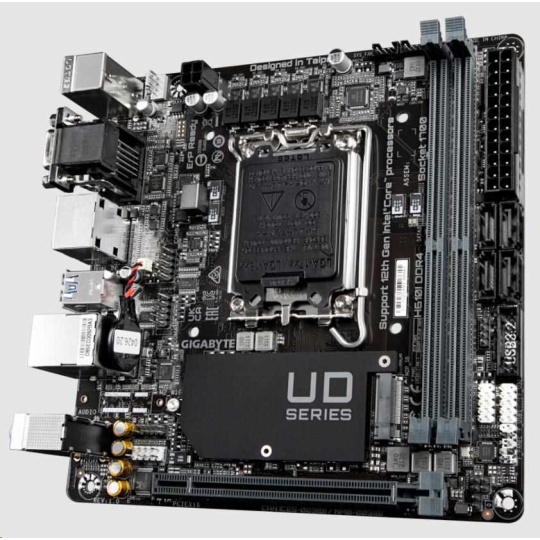

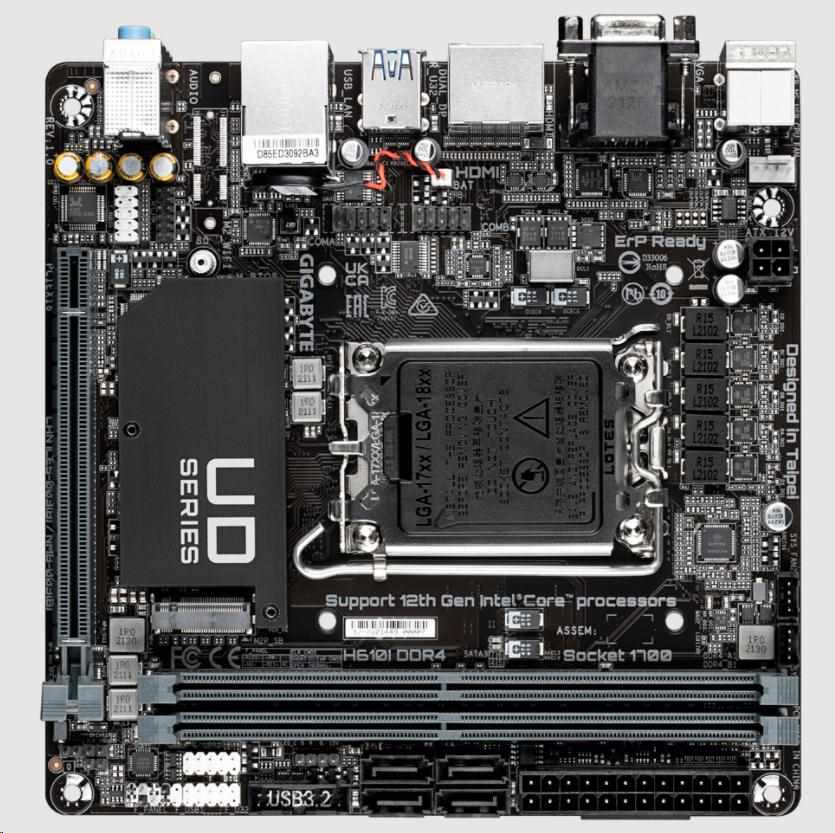

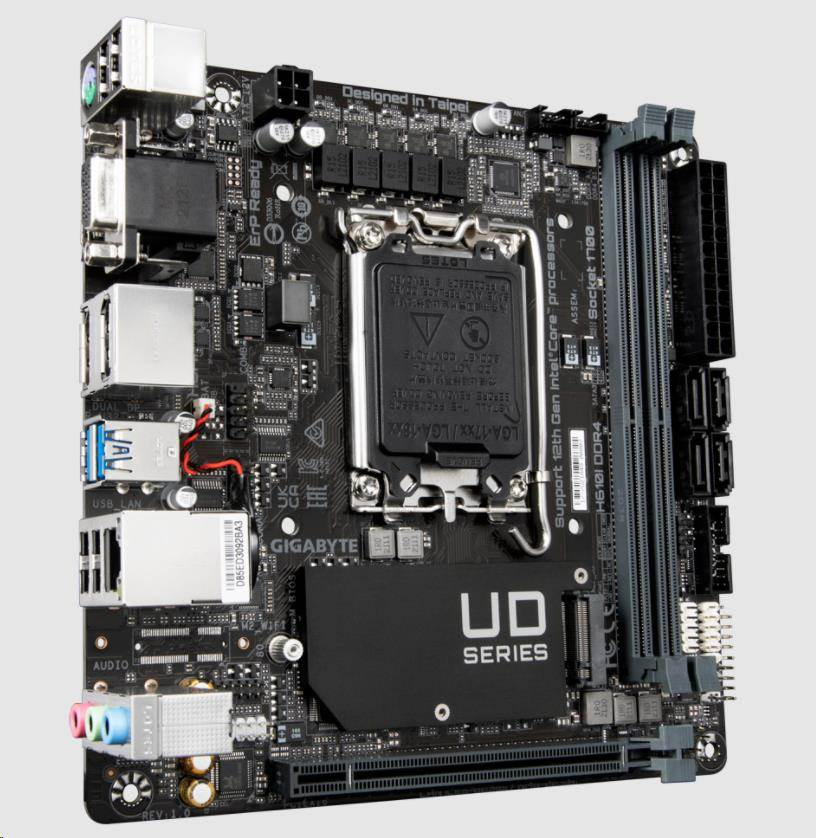

GIGABYTE MB Sc LGA1700 H610I DDR4, Intel H610, 2xDDR4, 2xDP, 1xHDMI, 1xVGA, mini-ITX

H610I DDR4

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
  • * Actual support may vary by CPU.

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.

Chipset

Intel® H610 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

Intel® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

Storage Interface

Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

USB

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x serial port headers
1 x Clear CMOS jumper
1 x chassis intrusion header

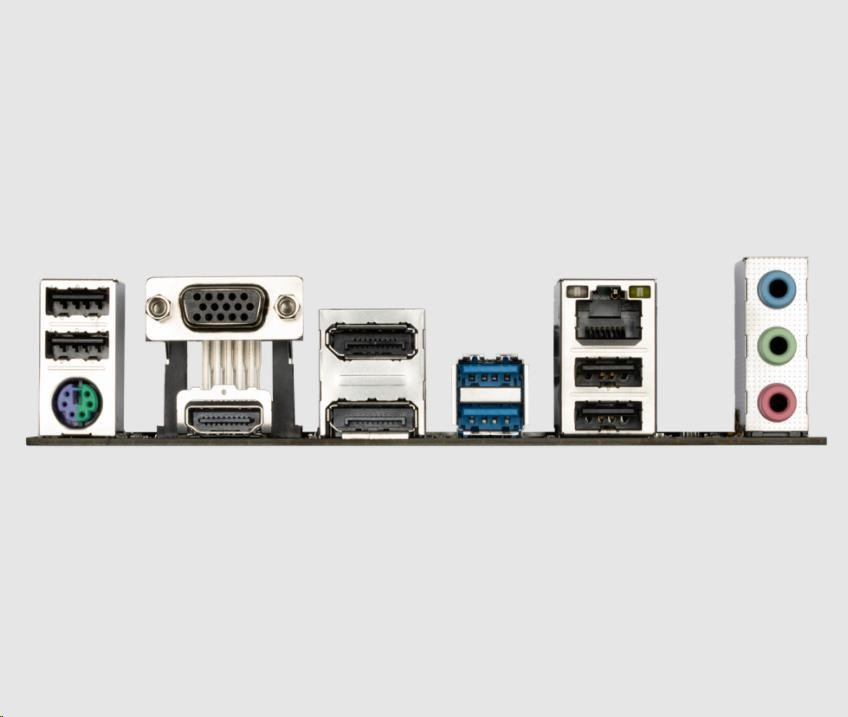

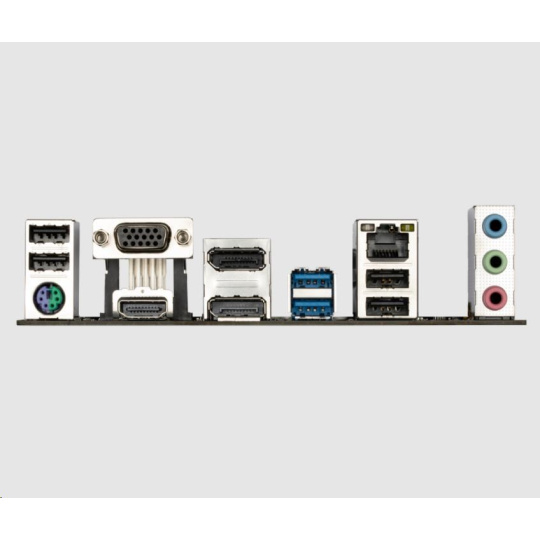

Back Panel Connectors

1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x D-Sub port
2 x DisplayPorts
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm

.
, ,
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1700
Formát základní desky
Mini-ITX
Chipset
Intel H610
PCI Express x16
1
Podpora RAID
Bez RAID podpory
COM port
Ne
LPT port
Ne
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
Intel
Počet paměťových slotů
2
DisplayPort
2
TPM
Ano
USB 2
8
USB 3
4
PCI
0
M.2 slot
1
SATA 3
4
VGA
1
DVI
0
HDMI
1
Led Header
Ano
USB C
0
LAN
1Gbit/s
DisplayPort Type-C
0
