GIGABYTE MB Sc LGA1700 B760M D3HP, Intel B760, 4xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX

Formát:micro ATX; Chipset:Intel B760; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:1.... viac
Bežná cena: 138.71  (-11%)
103.25 € bez DPH
Skladom > 5 ks
123.9 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 1706034
EAN: 4719331864347
Záruka: 36 Měsíc(ů)
Výrobca: Gigabyte
Popis a parametre
Diskusia

GIGABYTE MB Sc LGA1700 B760M D3HP, Intel B760, 4xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX

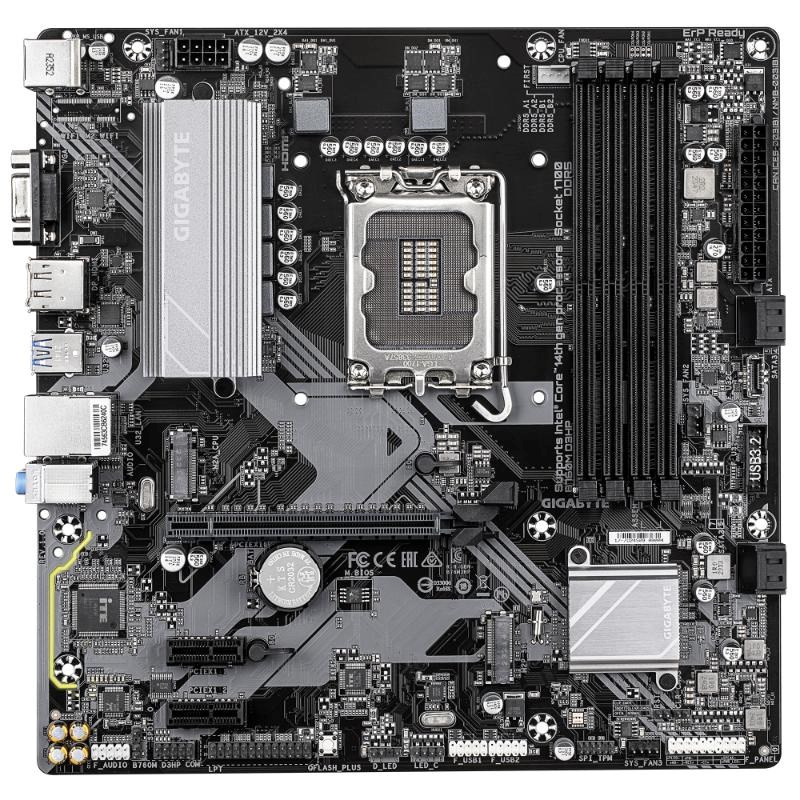

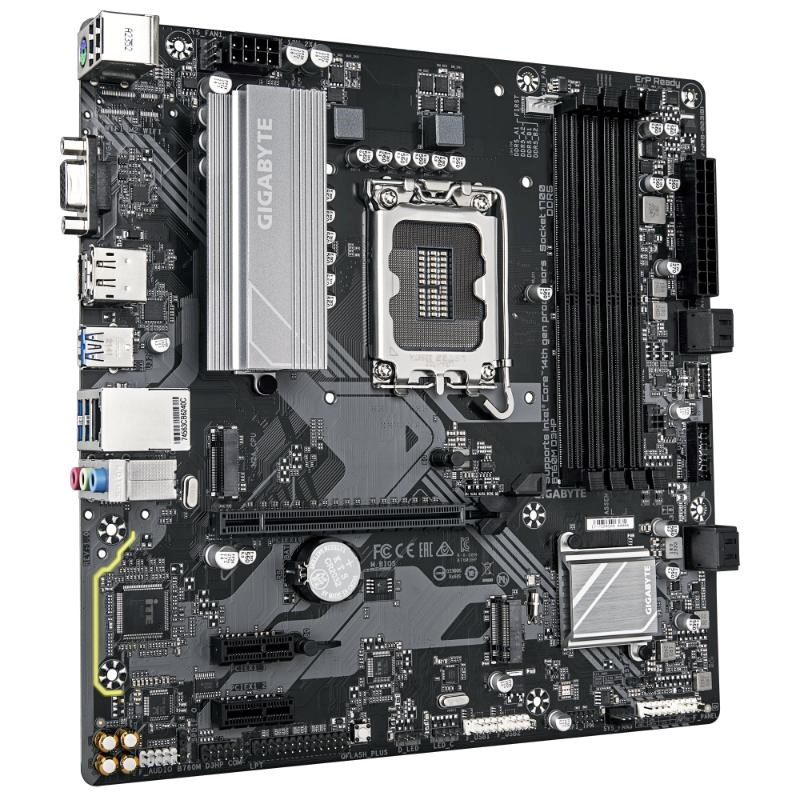

GIGABYTE B760M D3HP

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • Fast Networks:GbE LAN
  • Extended Connectivity:Front USB-C® 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card


CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU


Chipset

Intel® B760 Express Chipset


Memory

14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)


Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time


Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out


LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)


Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1


Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices


USB

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers


Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

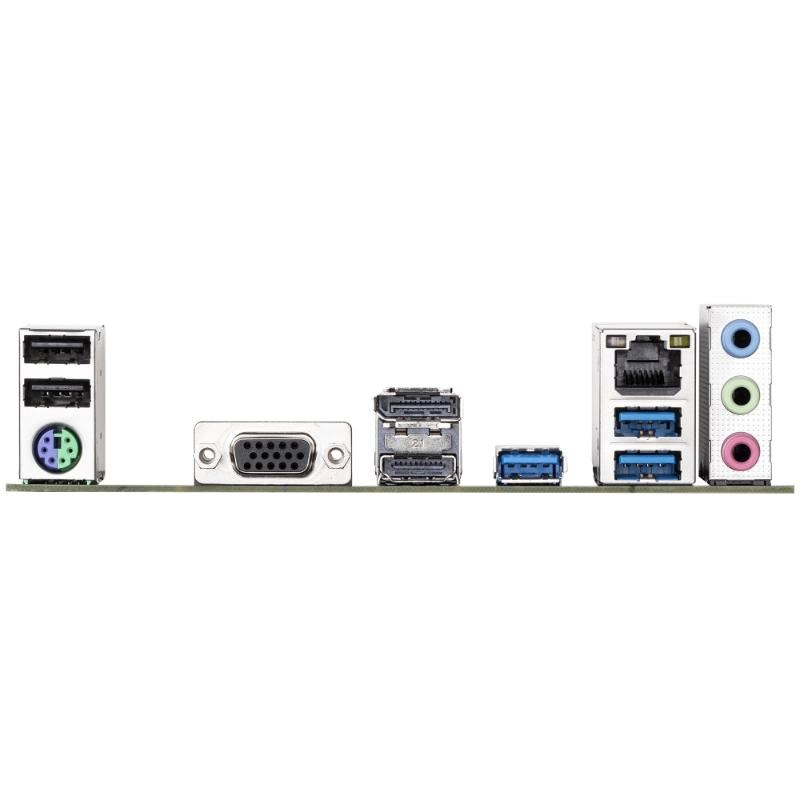

Back Panel Connectors

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks


I/O Controller

iTE® I/O Controller Chip


H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install


BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus


Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software


Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit Form Factor


Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

.
, ,
Technologie paměti RAM
DDR5
Socket (patice)
Socket 1700
Formát základní desky
micro ATX
Chipset
Intel B760
PCI Express x16
1
Podpora RAID
0
Podpora RAID
1
Podpora RAID
5
Podpora RAID
10
3.5mm Jack
Ano
Pro procesory
Intel
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
USB 2
6
USB 3
5
M.2 slot
2
SATA 3
4
VGA
1
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
2
USB C
1
LAN
1Gbit/s
DisplayPort Type-C
0
