GIGABYTE MB Sc LGA1851 Z890M GAMING X, Intel Z890, 4xDDR5, 2xDP, 1xHDMI, WiFi, mATX

Formát:micro ATX; Chipset:Intel Z890; Socket (pätica):Socket 1851; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:2.... viac
Bežná cena: 259.31  (-11%)
193.01 € bez DPH
Skladom > 5 ks
231.61 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 1706032
EAN: 4719331865160
Záruka: 36 Měsíc(ů)
Výrobca: Gigabyte
Popis a parametre
Diskusia

GIGABYTE MB Sc LGA1851 Z890M GAMING X, Intel Z890, 4xDDR5, 2xDP, 1xHDMI, WiFi, mATX

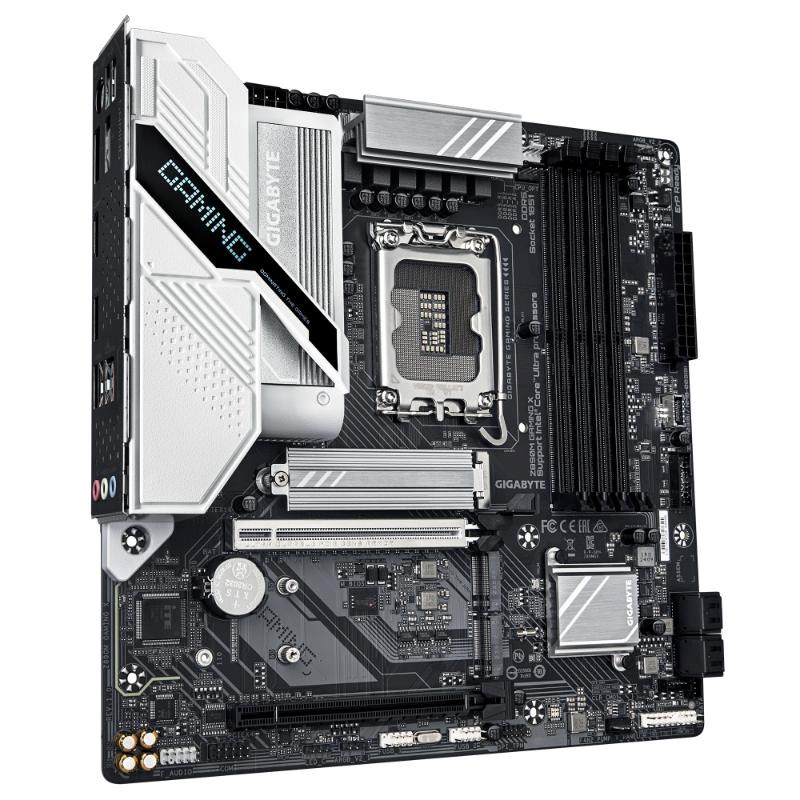

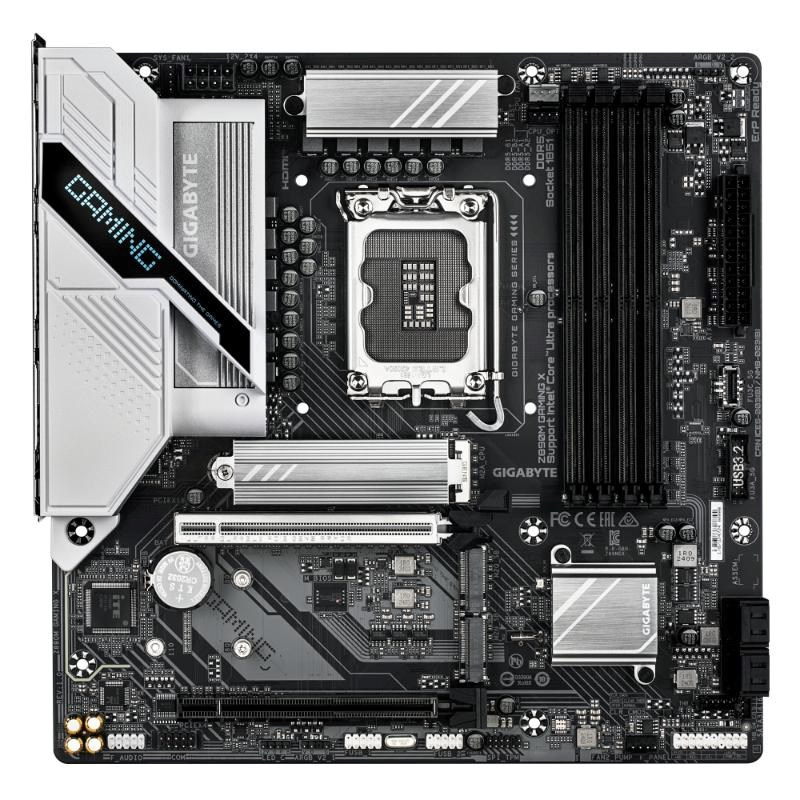

GIGABYTE Z890M GAMING X

  • Supports Intel® Core™ Ultra processors (Series 2)
  • Digital 8+1+2 phases VRM solution
  • D5 Bionic Corsa : for Infinite Memory Performance
  • AORUS AI SNATCH : Auto-Overclocking Software by AI models
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • Premium Compatibility : 4*DDR5 with XMP Memory Module Support
  • PCIe EZ-Latch : PCIe slots with Quick Release & Screwless Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking : 2.5GbE LAN
  • Extended Connectivity : HDMI, DisplayPort


CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.


Chipset

Intel® Z890 Express Chipset


Memory

Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)


Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time


Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings


LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)


Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices


USB

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 4 x USB 2.0/1.1 ports available through the internal USB headers


Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

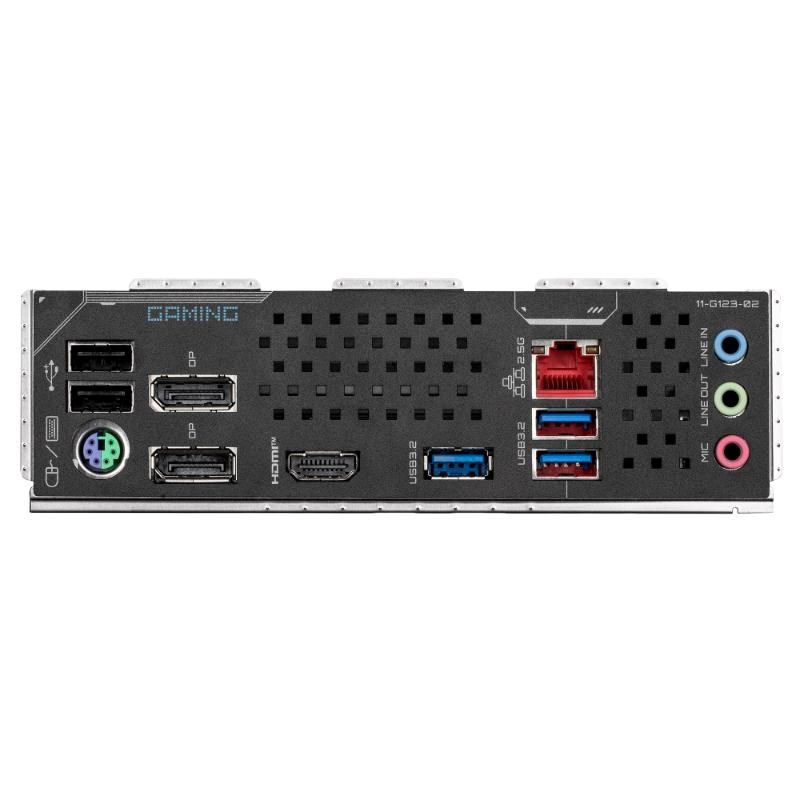

Back Panel Connectors

1 x PS/2 keyboard/mouse port
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.


I/O Controller

iTE® I/O Controller Chip


H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.


BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup


Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software


Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit


Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

.
, ,
Technologie paměti RAM
DDR5
Socket (patice)
Socket 1851
Formát základní desky
micro ATX
Chipset
Intel Z890
PCI Express x16
2
Podpora RAID
1
Podpora RAID
10
Podpora RAID
0
Podpora RAID
5
COM port
Ne
LPT port
Ne
3.5mm Jack
Ano
Bezdrátové připojení
WiFi + Bluetooth
Pro procesory
Intel
Počet paměťových slotů
4
DisplayPort
2
TPM
Ano
USB 2
6
USB 3
5
PCI
0
M.2 slot
3
SATA 3
4
VGA
0
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
0
USB C
1
LAN
2.5Gbit/s
DisplayPort Type-C
0
Počet Thunderbolt
0
PCI Express x8
0
