GIGABYTE VGA AMD Radeon RX 6900 XT AORUS MASTER 16G, RX 6900 XT, 16GB GDDR6, 2xDP, 2xHDMI

AORUS Radeon™ RX 6900 XT MASTER 16G

• Powered by RDNA2 Radeon™ RX 6900 XT
• Integrated with 16GB GDDR6 256-bit memory interface
• MAX-Covered cooling
• LCD Edge View
• RGB Fusion 2.0
• Dual BIOS

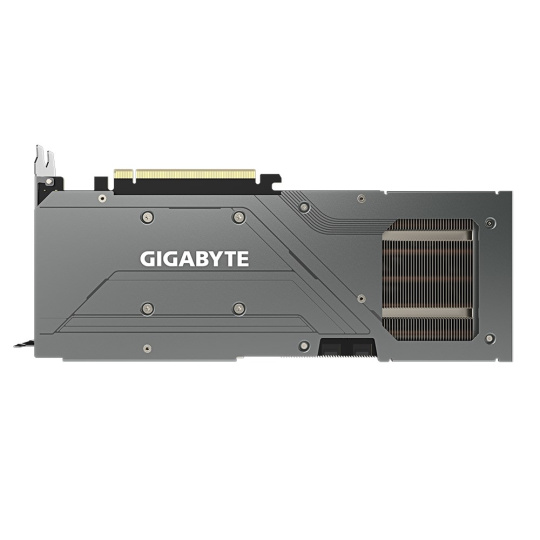

• Protection metal back plate
• 4 years warranty (Online registration required)

CORE CLOCK

• Boost Clock : up to 2365 MHz (Reference card: 2250 MHz)
• Game Clock : up to 2135 MHz (Reference card: 2015 MHz)

Graphics Processing

Radeon™ RX 6900 XT

Core Clock

Boost Clock : up to 2365 MHz (Reference card: 2250 MHz)
Game Clock* : up to 2135 MHz (Reference card: 2015 MHz)

Stream Processors

5120

Process Technology

7 nm

Memory Clock

16000 MHz

Memory Size

16 GB

Memory Type

GDDR6

Memory Bus

256 bit

Memory Bandwidth (GB/sec)

512 GB/s

Card Bus

PCI-E 4.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

L=322 W=140 H=60 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

850W

Power Connectors

8 pin*3

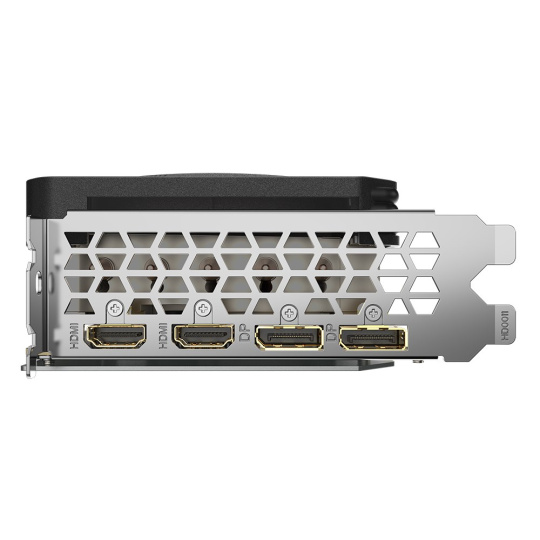

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

Accessories

1. Quick guide
2. 4-year warranty registration
3. Metal sticker

Note

*: “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
