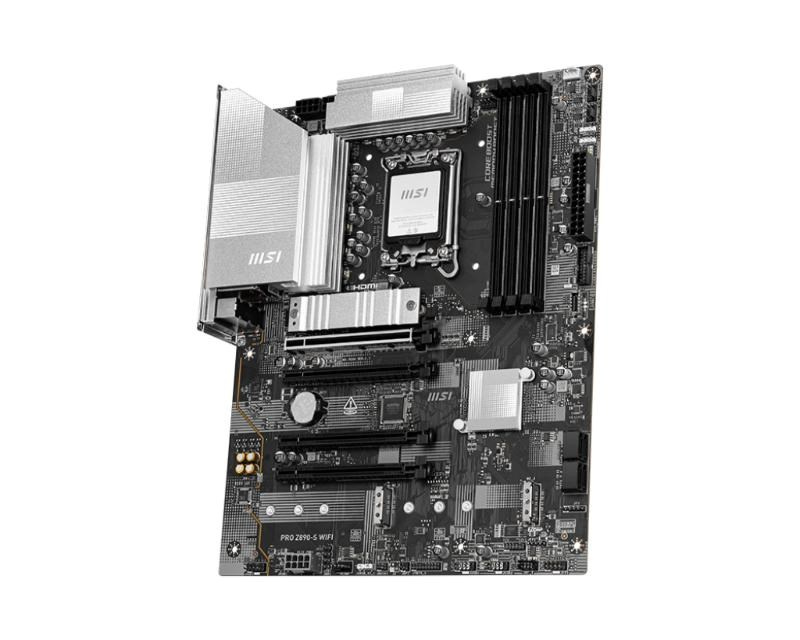

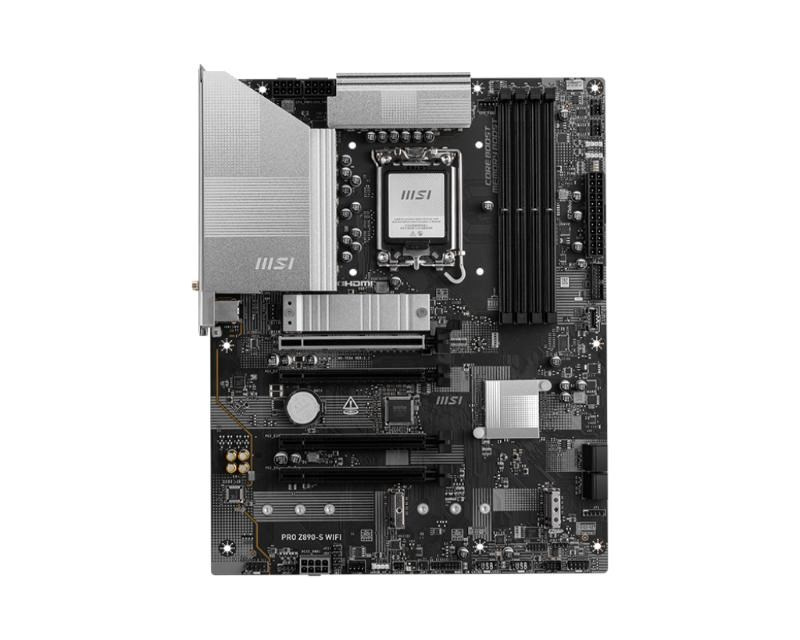

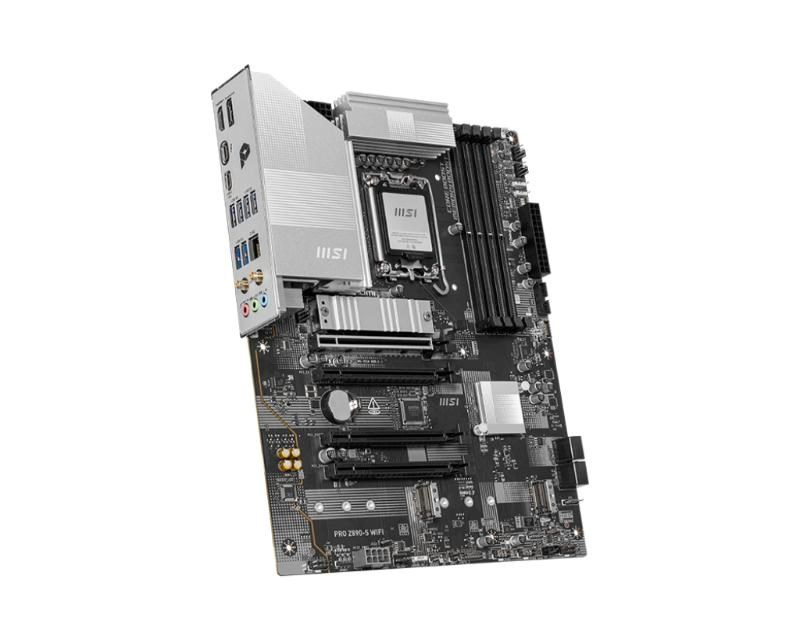

MSI PRO Z890-S WIFI
PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
Onboard Thunderbolt
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB
4x USB 2.0 (Front)
6x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN
Realtek® 8125D 2.5Gbps LAN
Internal IO
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
4x EZ Debug LED

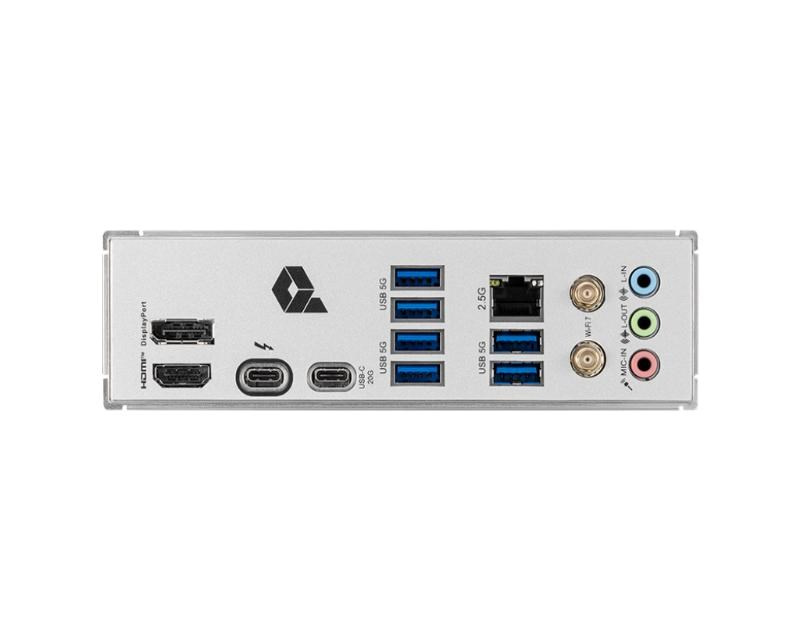

BACK PANEL PORTS
DisplayPort
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 20Gbps Type-C
USB 5Gbps Type-A
OPERATING SYSTEM
Support for Windows® 11 64-bit
BOX CONTENT
FORM Factor
ATX
24.4 x 30.5 cm
, ,
