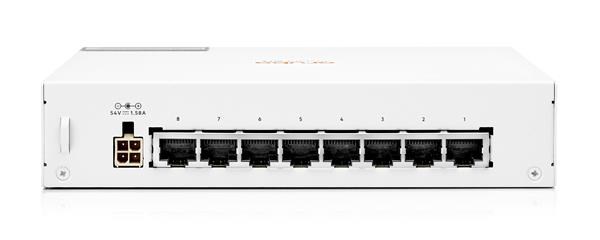

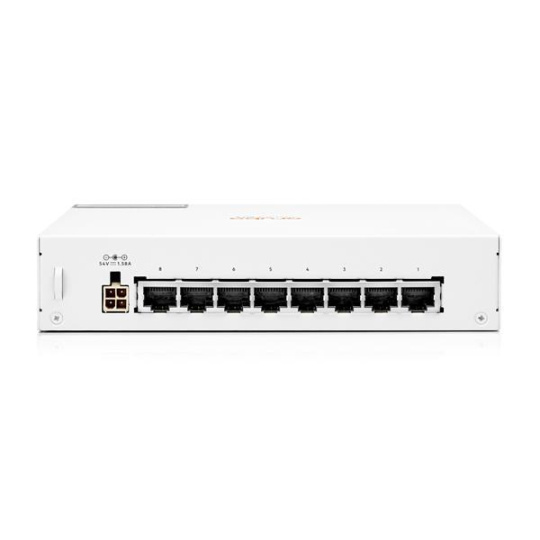

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430

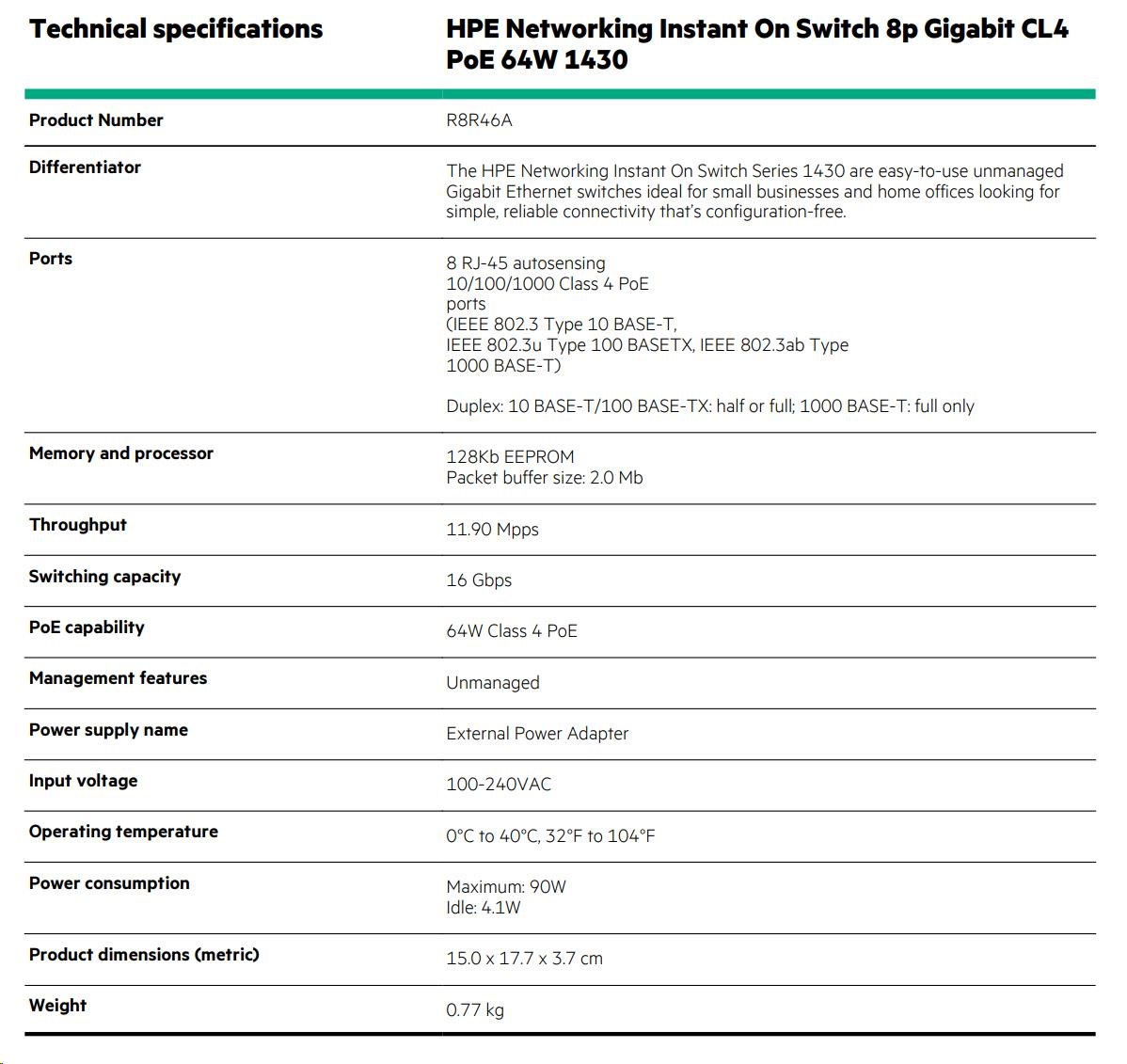

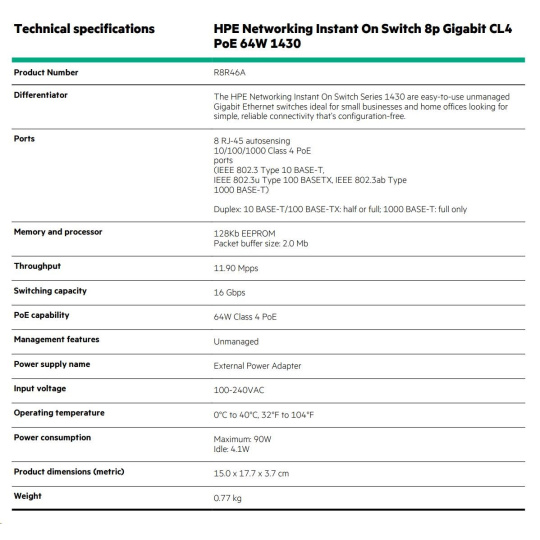

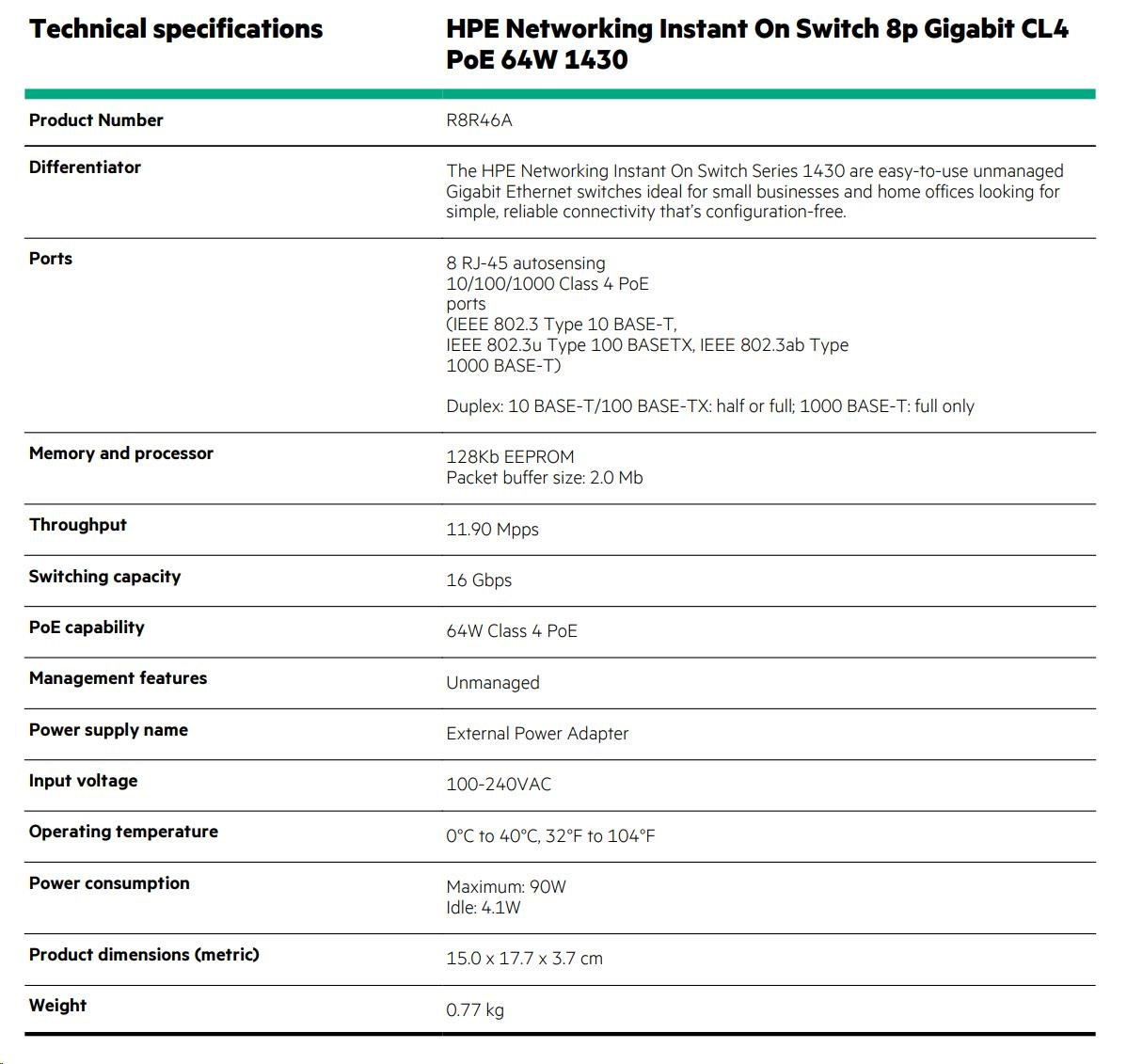

| Aruba Instant On 1430 8G Class4 PoE 64W Switch (R8R46A) | |
| I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Dimensions | 150(d) x 177(w) x 37(h) mm |
| Weight | 1.70 lb (0.77 kg) |
| Processor and Memory | 128Kb EEPROM; Packet buffer size: 2.0 Mb |
| Performance | |
| 100 Mb latency | < 2.7 µSec |
| 1000 Mb latency | < 1.80 µSec |
| Throughput (Mpps) | 11.90 Mpps |
| Capacity | 16 Gbps |
| MAC address table size | 8192 entries |
| Reliability MTBF (years) | 131.1 |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Nonoperating/ storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics | Fanless |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-240VAC |
| Current | 2A (54VDC - 1.58A) |
| Maximum power rating | 90W |
| Idle power | 4.1W |
| PoE power | 64W Class 4 PoE |
| Power Supply | External Power Adapter |
| Safety |
|
| Emissions |
|
| Immunity | BS/EN 55035, CISPR 35, KS C 9835 |
| Generic | EN 55035, CISPR 35 |
| EN | EN/IEC 61000-4-2 |
| ESD | EN/IEC 61000-4-3 |
| Radiated | EN/IEC 61000-4-4 |
| EFT/Burst | EN/IEC 61000-4-5 |
| Surge | EN/IEC 61000-4-6 |
| Conducted | EN/IEC 61000-4-8 |
| Power frequency magnetic field | EN/IEC 61000-4-11 |
| Voltage dips and interruptions | EN/IEC 61000-3- 2 |
| Harmonics | EN /IEC 61000-3-3 |
| Device Management | Unmanaged |
| Mounting positions and supported racking |
|
.
, ,
