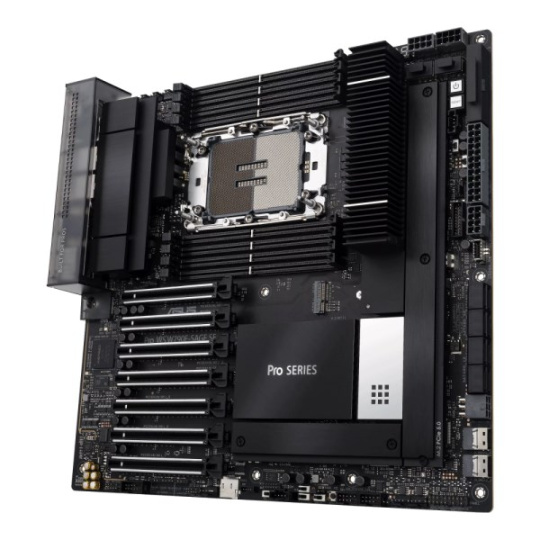

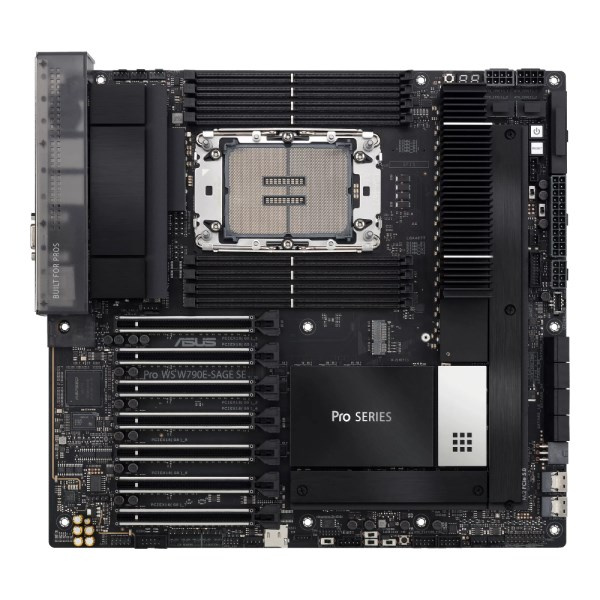

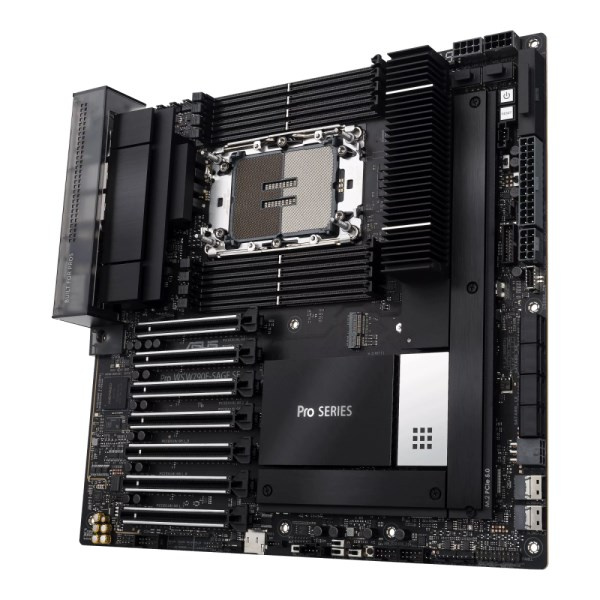

ASUS Pro WS W790E-SAGE SE
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
- CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
- Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS
- Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
- Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
- Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
CPU
Intel® Socket LGA4677 for Xeon® W-3400 and W-2400 Series Processors*
Supports Intel® Turbo Boost Max Technology 3.0
* Refer to www.asus.com for CPU support list.
Chipset
Intel® W790 Chipset
Memory
8 x DIMM slots, Max. 2048GB, DDR5
6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory*
8-Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
Graphics
1 x VGA port from AST2600
Expansion Slots
Intel® Xeon® W-3400 Series Processors*
7 x PCIe 5.0 slots (x16/x16/x16/x16/x16/x8/x16)
Intel® Xeon® W-2400 Series Processors*
4 x PCIe 5.0 slots (x16/x16/x16/x16)
* Please check the PCIe bifurcation table on the support site.
** Please refer to the block diagrams in the Appendix for more details.
Storage
Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports
Intel® Xeon® W-3400 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (PCIe 5.0 x4)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 5.0 x4)
Intel® W790 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4)
SlimSAS_1 supports PCIe 4.0 x4 NVMe
SlimSAS_2 supports PCIe 4.0 x4 NVMe
8 x SATA 6Gb/s ports
Ethernet
1 x Intel® dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 (USB Type-C®)
5 x USB 3.2 Gen 2 (4 x Type-A + 1 x Type-C®)
2 x USB 2.0 (Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (Type-C®)
1 x USB 3.2 Gen 1 header (2 ports)
2 x USB 2.0 headers (4 ports)
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal amplifier for headphones and speakers
Supports jack-detection, multi-streaming, front panel jack-retasking
120 dB SNR playback / 113 dB SNR recording
Supports up to 32-Bit/192 kHz playback

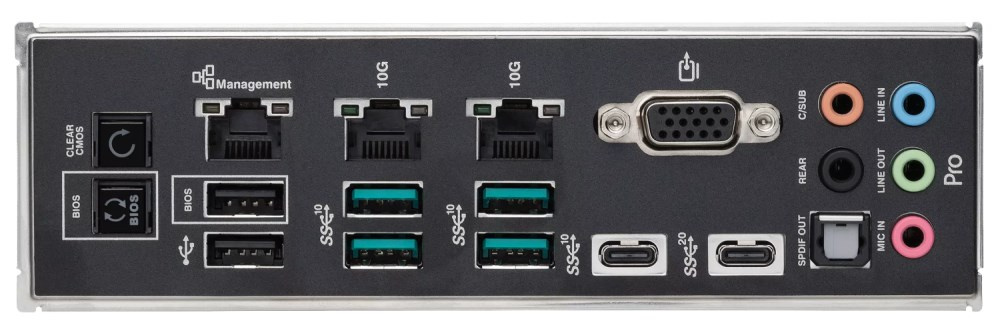

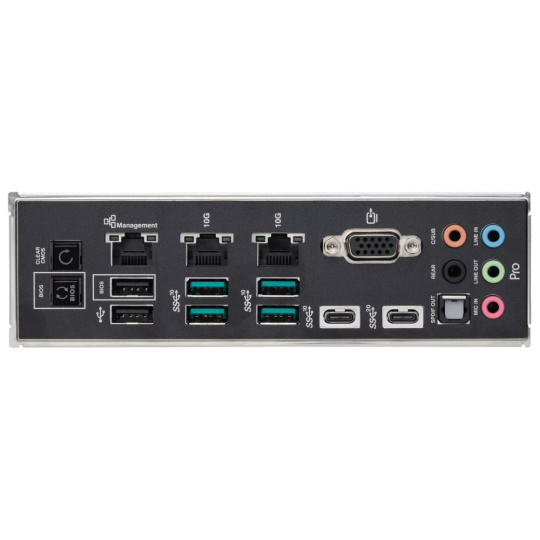

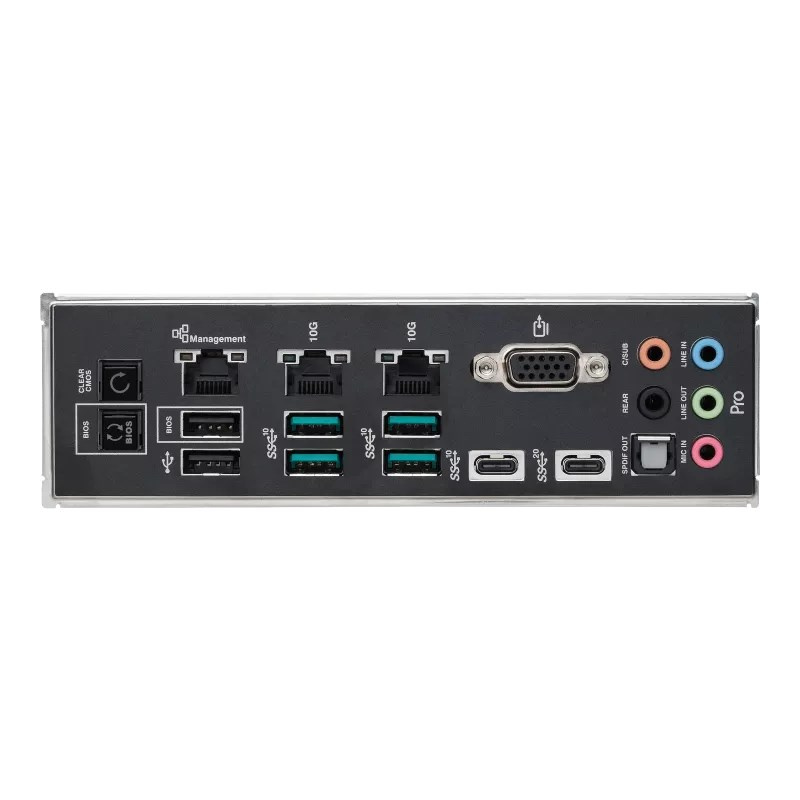

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 (Type-C)
5 x USB 3.2 Gen 2 (Type-A + Type-C)
2 x USB 2.0
1 x VGA port
2 x Intel® 10Gb Ethernet
1 x Realtek 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
1 x CPU Fan header
1 x CPU OPT Fan header
5 x Chassis Fan headers
1 x W_PUMP+ header
2 x 24-pin Main Power connectors
4 x 8-pin +12V Power connectors
1 x 8-pin PCIe Power connector
1 x 6-pin PCIe Power connector
3 x M.2 slots
2 x SlimSAS connectors
8 x SATA ports
USB headers and additional internal connectors
Special Features
Extreme OC Kit
ASUS 5X PROTECTION III
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
24/7 reliability and overcurrent protection
Software Features
Armoury Crate
AI Suite 3
ASUS CPU-Z
ASUS Control Center Express
Adobe Creative Cloud (trial)
Norton 360 Deluxe (trial)
WinRAR
UEFI BIOS tools
BIOS
512 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE (UEFI mode)
Accessories
4 x SATA cables
Thermistor cable pack
Mounting and M.2 accessories
Documentation
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
EEB Form Factor
12 inch x 13 inch (30.5 cm x 33 cm)
