Manhattan HDMI přepínač, 1080p 4-Port HDMI Multiviewer Switch, černá

Špecifikácia kábla / redukcie:Adaptér, Redukce.... viac
Bežná cena: 151.84  (-14%)
108.76 € bez DPH
Nie je na sklade - opýtajte sa
130.51 €
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 254928
EAN: 766623207881
Záruka: 24 Měsíc(ů)
Výrobca: Manhattan
Popis a parametre

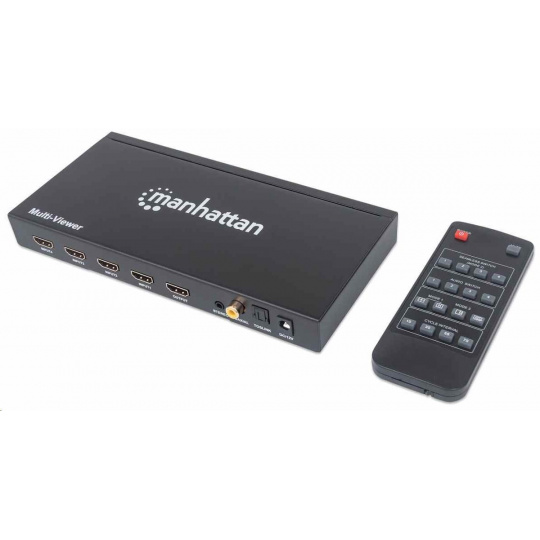

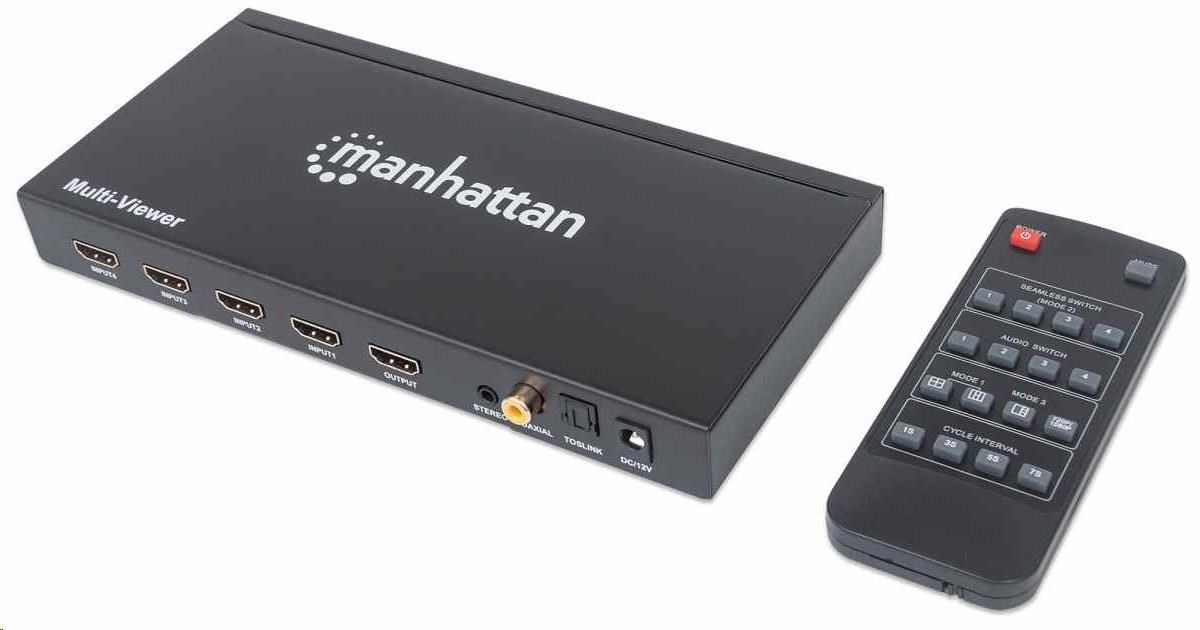

Manhattan HDMI přepínač, 1080p 4-Port HDMI Multiviewer Switch, černá

1080p 4-Port HDMI Multiviewer Switch

Switch with Four Inputs on One Display, Video Bandwidth Amplifier, IR Remote Control, Black

  • Share up to four HDMI Audio/Video sources on one display at the same time or one at a time
  • Multiviewer function supports four customizable modes: Full Screen and three variations of Combo Mode with seamless switching between sources
  • Supports 1080p resolution as well as HD 3D video and Deep Color (36-bits/pixel)
  • Integrated video bandwidth amplifier
  • Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
  • Supports Stereo, Coaxial and Toslink Audio output for connection to amplifier or receiver for the best sound quality
  • Supports source switching via IR remote control or manual switching with the push of a button
  • A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (reducing space and cost needed for multiple displays), security and other applications
  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
  • Fully HDCP compliant
  • AC powered with Plug and Play installation; no special setup or remote required
  • Plug-and-play installation
  • Gold-plated contacts for corrosion-free connections
  • Three-year warranty


Standards and Certifications - HDMI 1.3
- HDCP 1.4a
- CE
- RoHS2
Package Contents - 1080p 4-Port HDMI Multiviewer Switch
- IR Remote Control
- Power Adapter
- Quick Instruction Guide
Source-to-switch range up to 15 m (49 ft.)
Switch-to-display range up to 15 m (49 ft.)
Power 12 VDC @ 2 A; AC power adapter: 0.9 m (2.9 ft.)
Remote battery (included) CR2025 3 V lithium cell

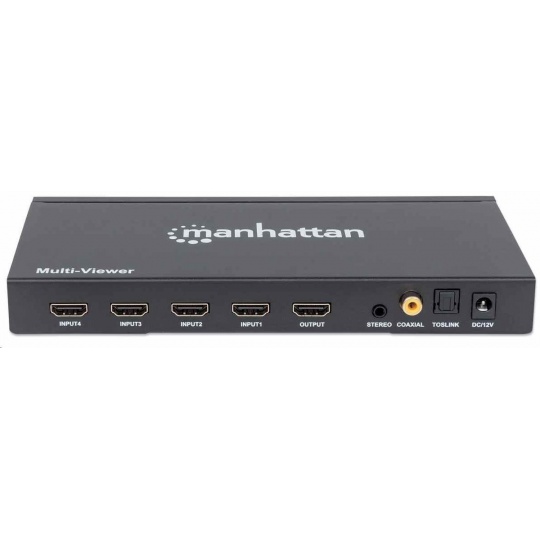

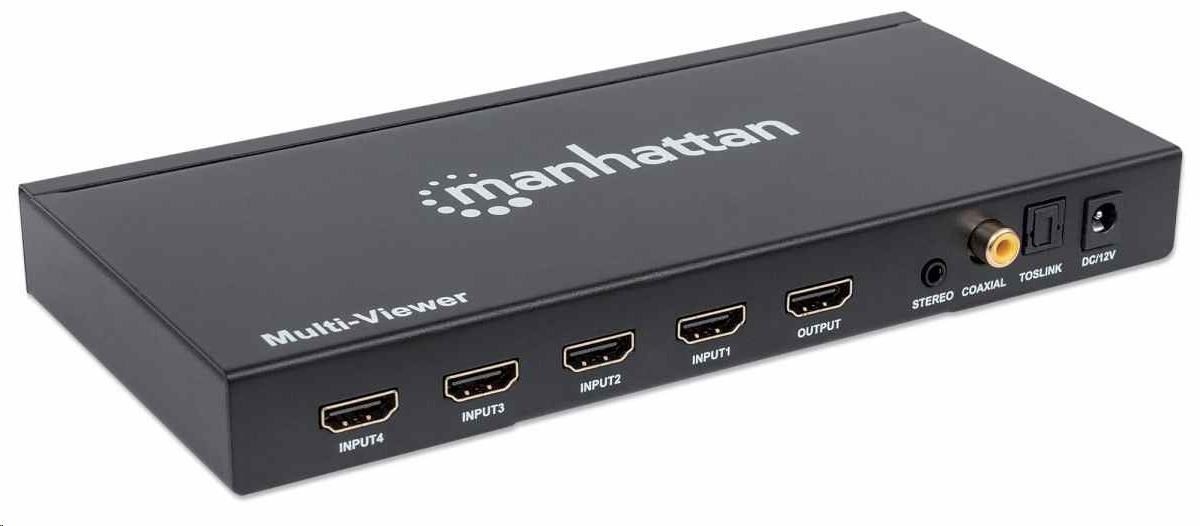

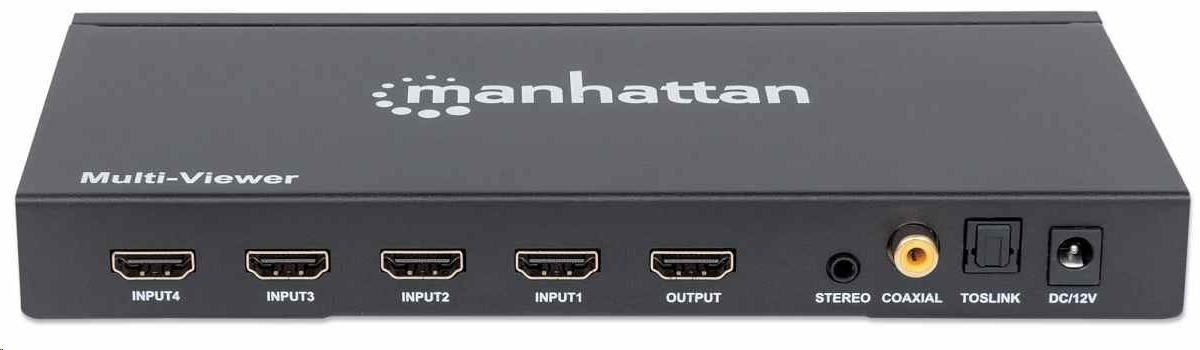

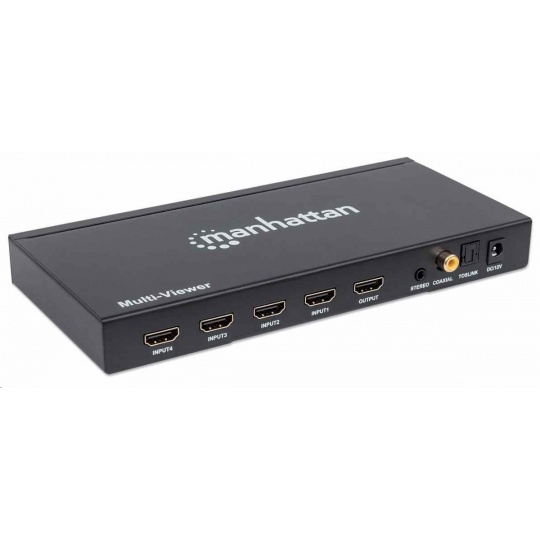

Connections One HDMI female, 19-pin (output)
Four HDMI female, 19-pin (input)
One Stereo female, 3.5 mm (output)
One Coaxial female, S/PDIF (output)
One Toslink female (output)
One USB, Mini-B (input) factory use only
One 12 VDC power female, OD 5.5 mm / ID 2.1 mm (input)
Signal Input/Output
Input video signal 400 - 600 mV
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 2.25 Gbps and 1080p resolution
Output video HDMI 1.3, HDCP 1.4a
Frequency 2.25 Gbps / 225 MHz
Supported Video Resolutions
DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p

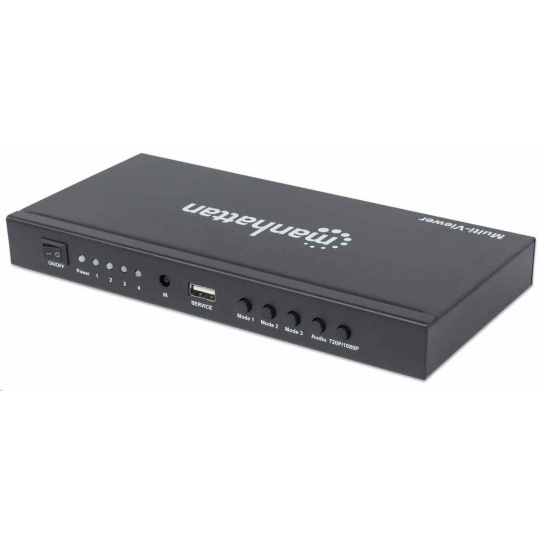

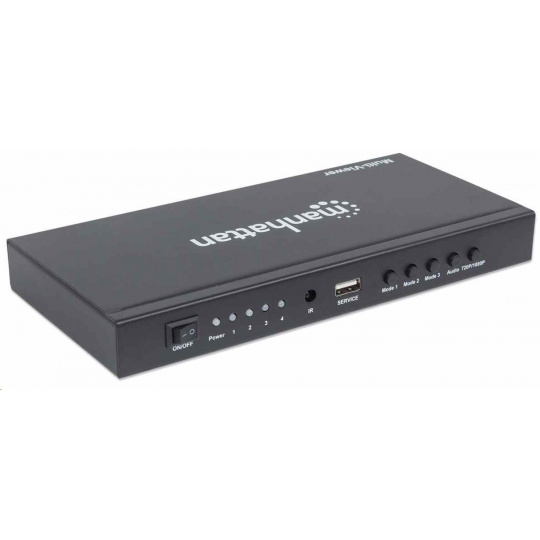

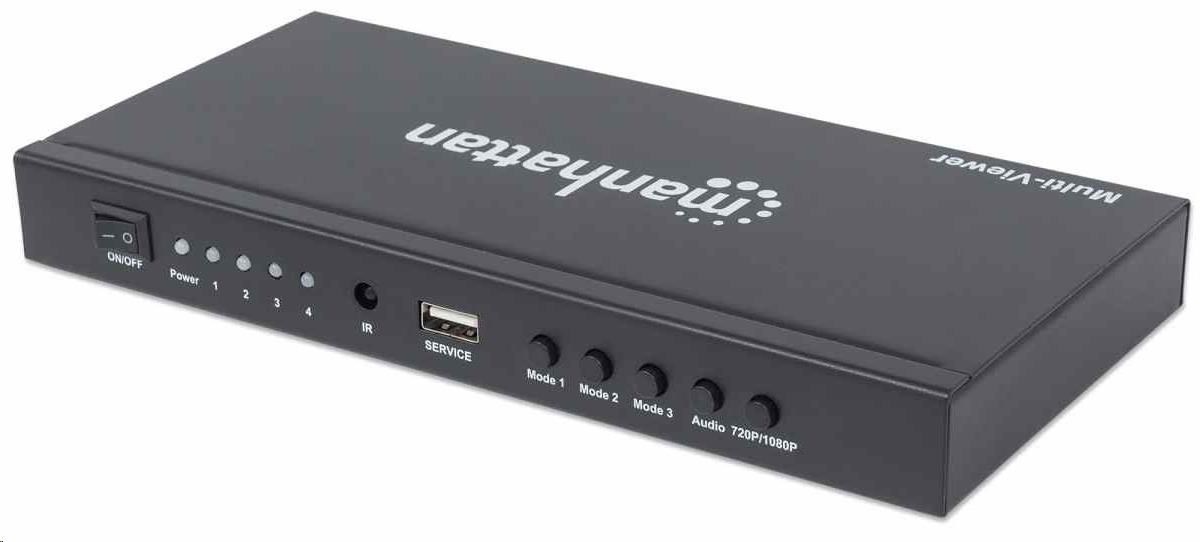

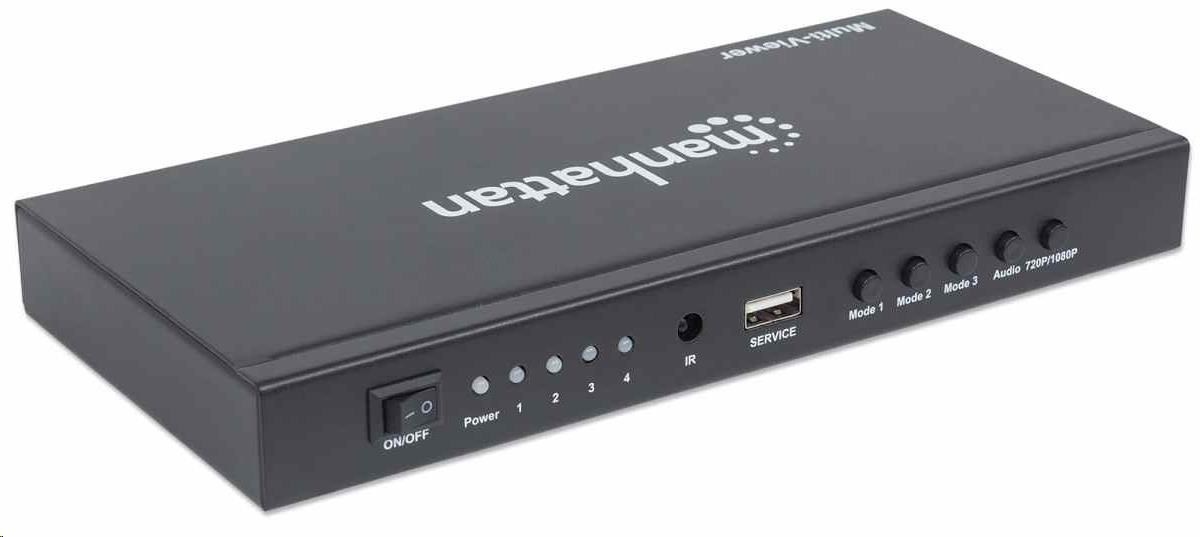

LED indicators power and port connection
Power adapter 12 VDC / 2A; 0.9 m (2.9 ft.)
Dimensions 213 x 100 x 25 mm (8.4 x 3.9 x 1 in.)
Weight 0.46 kg (1 lbs.)
Housing metal
Operating Environment
Operation Temperature 0 – 40°C (32 – 104°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Humidity (noncondensing) 0 – 96%
