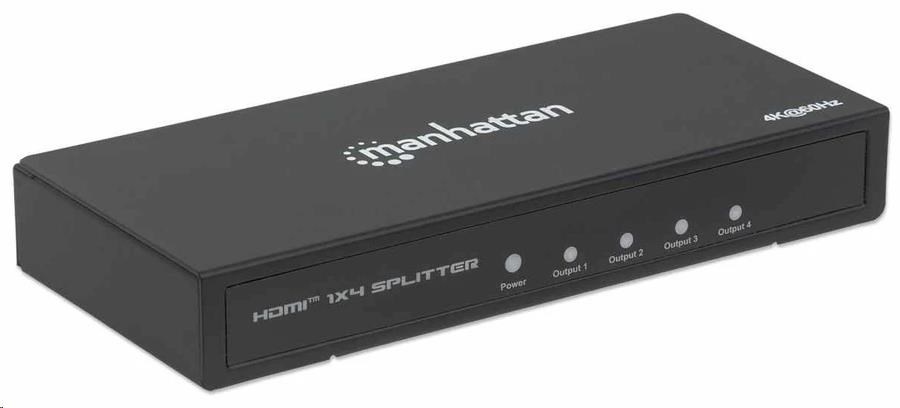

Manhattan HDMI rozdělovač, 4K 4-Port HDMI Splitter, 4K@60Hz, AC Powered, černá

4K 4-Port HDMI Splitter

4K@60Hz, AC Powered, Black

  • Replicates an Ultra-High-Definition (UHD) digital audio/video signal for up to four UHD HDMI displays
  • 4K@60Hz resolution, full 3D video, Deep Color and High Dynamic Range (HDR)
  • Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
  • Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
  • Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
  • HDCP compliant
  • Multiple splitters (three total) may be cascaded up to support 10 4K displays
  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
  • Plug and play
  • Gold-plated contacts for corrosion-free connections
  • Three-year warranty

TECHNICAL SPECIFICATIONS

Standards and Certifications - HDCP 2.2/1.4
- CTS 1.4b
- CE
- FCC
- RoHS2
Package Contents - 4K 4-Port HDMI Splitter
- Power adapter
- Quick Instruction Guide
General
Source-to-splitter and splitter-to-display range up to 20 m (66 ft.)
4K@60Hz 4:4:4 — total 10 meters
Max. 5 m from source to splitter
Max. 5 m from splitter to display
4K@30Hz — total 20 meters
Max. 10 m from source to splitter
Max. 10 m from splitter to display
Power adapter 5 VDC / 2 A; 1.2 m (4 ft.)
Power consumption 5W
Connections

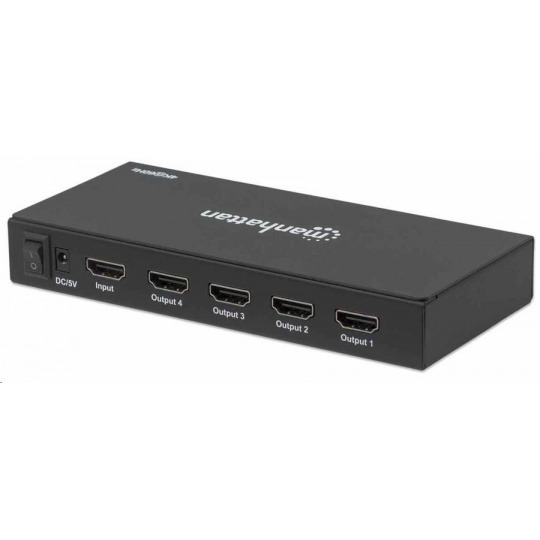

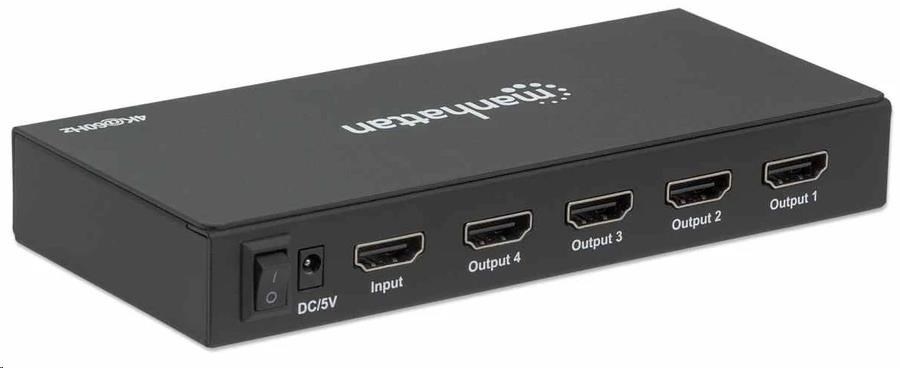

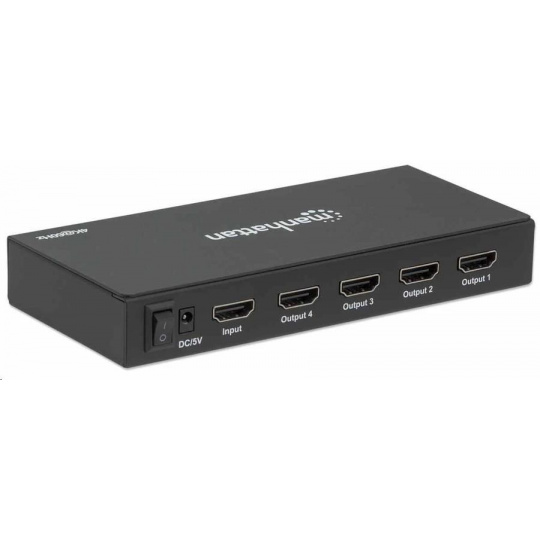

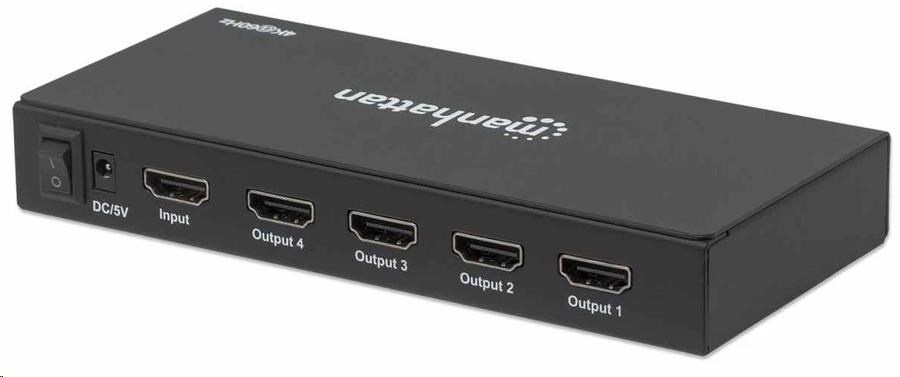

Connections One HDMI female (input)
Four HDMI female (output)
One 5 VDC power female (input)
Signal Input/Output
Input video signal 0.5 – 1.0 V p-p
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 18 Gbps and 4096x2160 at 60 Hz resolution
Output video HDMI 2.0, HDCP 2.2
Supported Video Resolutions
DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
Physical

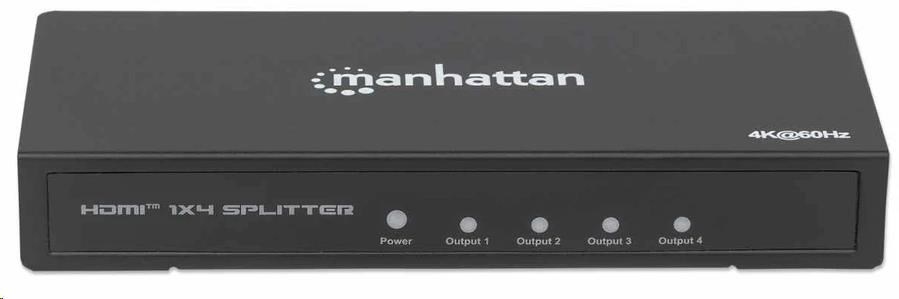

LED indicators power and port connection
Dimensions 154 x 69 x 23 mm (6.1 x 2.7 x 0.9 in.)
Weight 0.25 kg (0.7 lb.)
Housing metal
Operating Environment
Operation Temperature 0 – 40°C (32 – 104°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Humidity (noncondensing) 0 – 96%

.
